The edge of the existing slab on grade is chipped back to expose existing reinforcement with a continuous one-inch edge clearance. Number four adhesive dowels with six-inch embedment are placed at twelve inches on center into the existing edge. The new concrete slab on grade matches the thickness of the existing slab unless noted otherwise, and is reinforced with number four bars at twelve inches on center each way. Subgrade preparation is executed per standard slab on grade typical details.

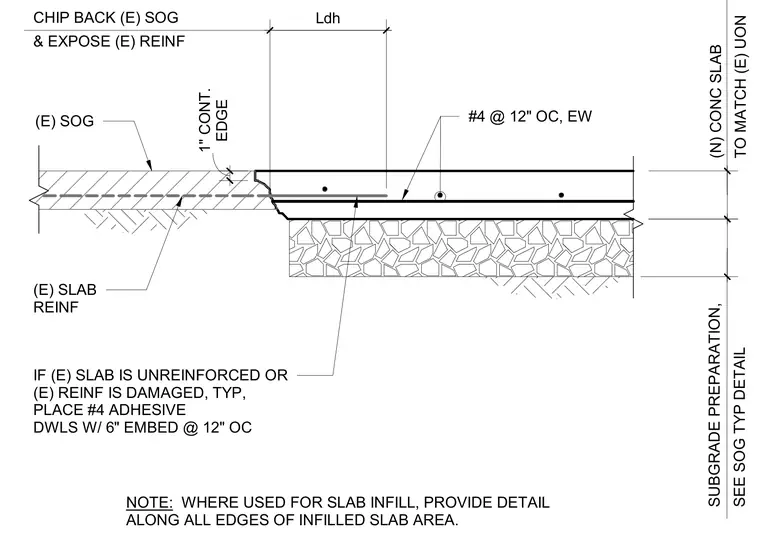

SUBGRADE PREPARATION, SEE SOG TYP DETAIL TO MATCH (E) UON (N) CONC SLAB CHIP BACK (E) SOG & EXPOSE (E) REINF IF (E) SLAB IS UNREINFORCED OR (E) REINF IS DAMAGED, TYP, PLACE #4 ADHESIVE DWLS W/ 6" EMBED @ 12" OC (E) SLAB REINF (E) SOG #4 @ 12" OC, EW Ldh EDGE 1" CONT. NOTE: WHERE USED FOR SLAB INFILL, PROVIDE DETAIL ALONG ALL EDGES OF INFILLED SLAB AREA.
