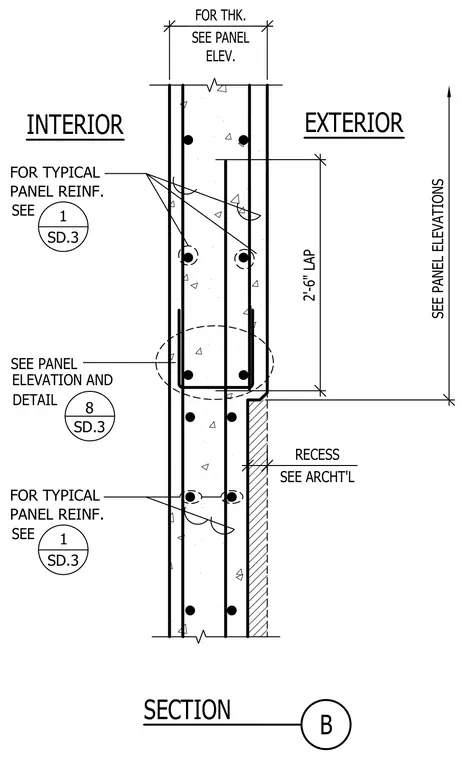

This structural detail shows a vertical section through a precast concrete wall panel featuring a step-down recess on the exterior face. Vertical reinforcing bars are detailed with a two-foot, six-inch lap splice at the transition zone. Panel thickness is specified per the panel elevations, and typical reinforcement requirements reference detail one on sheet SD.3. An architectural recess is coordinated with the architectural drawings, and connection details reference detail eight on sheet SD.3.
SEE PANEL ELEVATIONS SD.3 DETAIL 8 SEE PANEL ELEVATION AND FOR TYPICAL PANEL REINF. SD.3 SEE 1 2'-6" LAP FOR TYPICAL PANEL REINF. SD.3 SEE 1 FOR THK. SEE PANEL ELEV. B SECTION RECESS SEE ARCHT'L EXTERIOR INTERIOR
