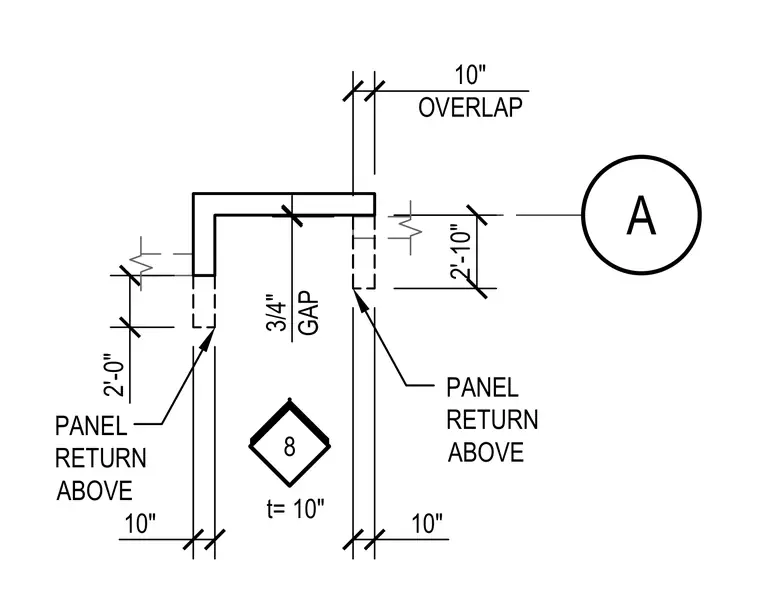

Precast concrete wall panels feature a ten-inch thickness with panel returns above and a ten-inch overlap dimension. A three-quarter-inch gap separates the adjacent panel elements, maintaining a two-foot-zero-inch and two-foot-ten-inch vertical offset alignment.
8 2'-0" 2'-10" A PANEL RETURN ABOVE PANEL RETURN ABOVE 10" OVERLAP 3/4" GAP t= 10" 10" 10"
