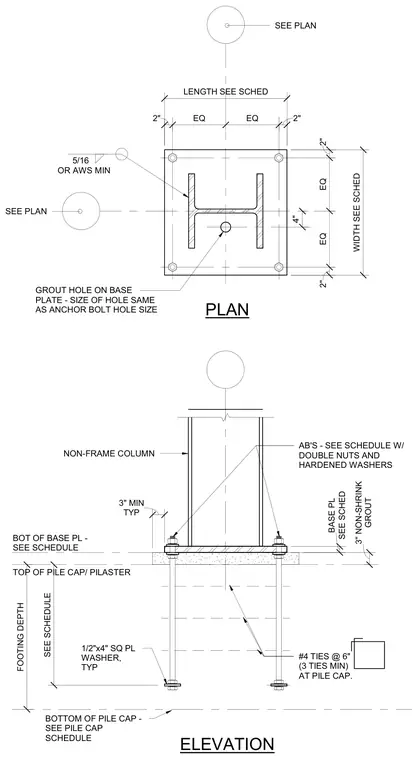

A structural steel non-frame column bears on a steel base plate anchored to a concrete pile cap or pilaster. Anchor bolts feature double nuts, hardened washers, and a half-inch by four-inch square plate washer at the embedded bottom end. A center hole in the base plate matches the anchor bolt hole size for non-shrink grout placement. The column connects to the base plate with welds sized per American Welding Society minimum standards or scheduled specifications. A three-inch layer of non-shrink grout levels the assembly above the top of the concrete support, while number four ties at six-inch spacing reinforce the pile cap.
BOT OF BASE PL - SEE SCHEDULE TOP OF PILE CAP/ PILASTER AB'S - SEE SCHEDULE W/ DOUBLE NUTS AND HARDENED WASHERS SEE PLAN SEE PLAN NON-FRAME COLUMN ELEVATION PLAN BOTTOM OF PILE CAP - SEE PILE CAP SCHEDULE 1/2"x4" SQ PL WASHER, TYP OR AWS MIN 5/16 TYP 3" MIN GROUT 3" NON-SHRINK SEE SCHED BASE PL FOOTING DEPTH 2" EQ EQ 2" WIDTH SEE SCHED 2" EQ EQ 2" LENGTH SEE SCHED 4" GROUT HOLE ON BASE PLATE - SIZE OF HOLE SAME AS ANCHOR BOLT HOLE SIZE SEE SCHEDULE #4 TIES @ 6" (3 TIES MIN) AT PILE CAP.
