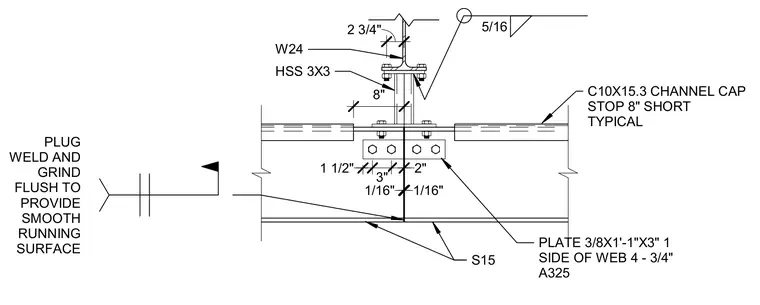

A hollow structural section 3x3 post connects to a wide-flange W24 beam above, secured with bolts and a 5/16 fillet weld. Below, a C10x15.3 channel cap stops eight inches short and is paired with a 3/8 inch by 1 foot 1 inch by 3 inch plate on one side of the web. Four 3/4 inch A325 bolts fasten the plate across a S15 member with a 1/16 inch joint clearance. Plug welds are specified to be ground flush to provide a smooth running surface.
8" 1 1/2" 3" 2" 1/16" 1/16" 2 3/4" PLATE 3/8X1'-1"X3" 1 SIDE OF WEB 4 - 3/4" A325 S15 HSS 3X3 W24 C10X15.3 CHANNEL CAP STOP 8" SHORT TYPICAL 5/16 PLUG WELD AND GRIND FLUSH TO PROVIDE SMOOTH RUNNING SURFACE
