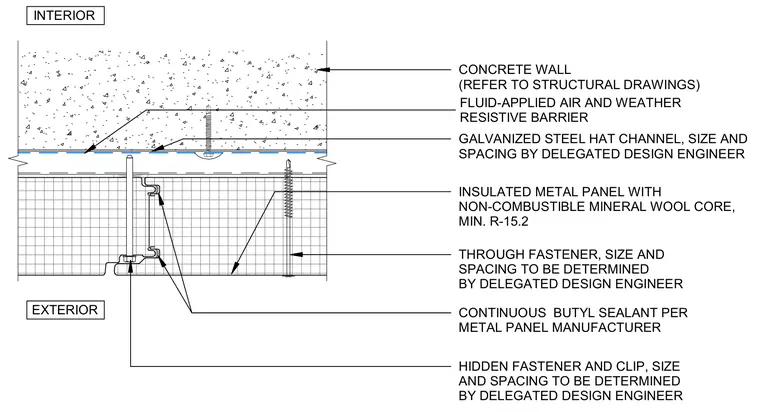

An insulated metal panel with a non-combustible mineral wool core providing a minimum R-15.2 thermal value attaches to a concrete wall via galvanized steel hat channels. A fluid-applied air and weather resistive barrier coats the exterior face of the concrete substrate. Through fasteners and hidden fastener clips secure the metal panels, with sizing and spacing determined by a delegated design engineer. Continuous butyl sealant is installed at panel joints per the manufacturer specifications.
INSULATED METAL PANEL WITH NON-COMBUSTIBLE MINERAL WOOL CORE, MIN. R-15.2 HIDDEN FASTENER AND CLIP, SIZE AND SPACING TO BE DETERMINED BY DELEGATED DESIGN ENGINEER CONCRETE WALL (REFER TO STRUCTURAL DRAWINGS) CONTINUOUS BUTYL SEALANT PER METAL PANEL MANUFACTURER GALVANIZED STEEL HAT CHANNEL, SIZE AND SPACING BY DELEGATED DESIGN ENGINEER EXTERIOR INTERIOR FLUID-APPLIED AIR AND WEATHER RESISTIVE BARRIER THROUGH FASTENER, SIZE AND SPACING TO BE DETERMINED BY DELEGATED DESIGN ENGINEER
