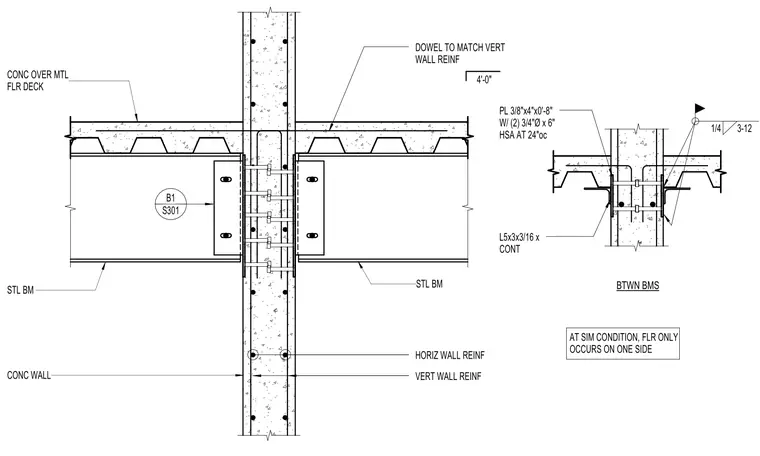

Steel beams frame into a reinforced concrete wall supporting a concrete over metal floor deck assembly. The concrete wall contains horizontal and vertical wall reinforcement along with dowels matching the vertical wall reinforcement. A plate measuring three-eighths by four by eight inches with two three-quarter-inch diameter by six-inch heavy stud anchors at twenty-four inches on center embeds into the concrete wall. Continuous L5x3x3/16 angles attach to support the framing conditions, with a quarter-inch weld spaced at three-inches on twelve-inches typical for similar conditions where the floor occurs on only one side.
CONC OVER MTL FLR DECK CONC WALL HORIZ WALL REINF VERT WALL REINF DOWEL TO MATCH VERT WALL REINF 4'-0" STL BM STL BM S301 B1 BTWN BMS PL 3/8"x4"x0'-8" W/ (2) 3/4"Ø x 6" HSA AT 24"oc L5x3x3/16 x CONT 1/4 3-12 AT SIM CONDITION, FLR ONLY OCCURS ON ONE SIDE
