Structural · S-EDEAM

HSS Brace Connection to W-Beam

Materials

Steel

Elements

Beams Bracing Connections / Plates Reinforcing

Connections

Braced Frame Connection Gusset Plate HSS Connection Bracing Connection Welded Connection

About this detail

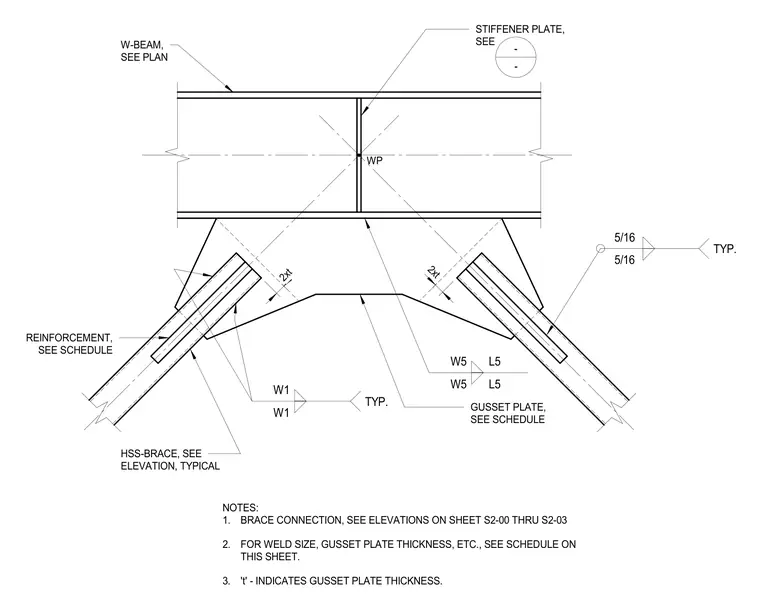

A gusset plate connects diagonal hollow structural section braces to the underside of a wide-flange beam at a work point. Stiffener plates align vertically inside the beam web at the intersection point. Fillet welds secure the gusset plate to the beam and the braces to the gusset plate, with sizes and plate thicknesses specified in the schedule. Additional reinforcement plates attach to the braces as detailed on the schedule.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
