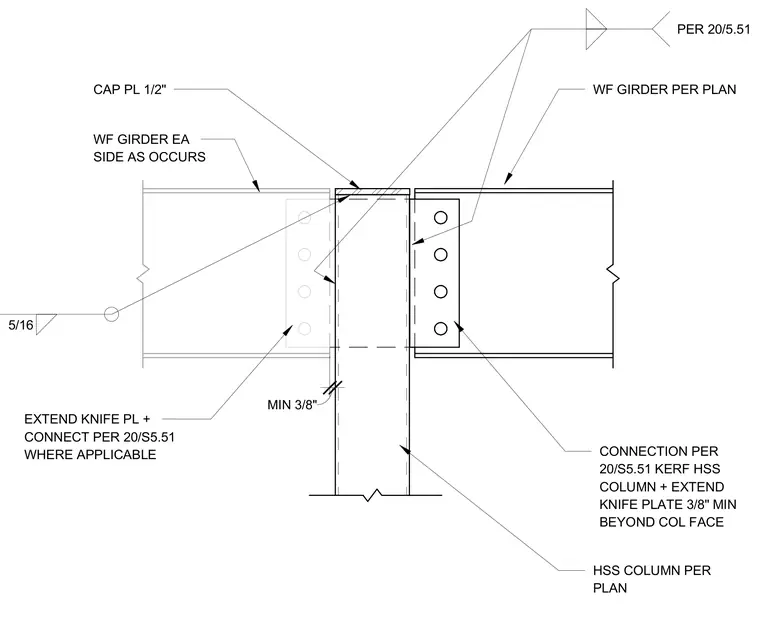

Wide flange girders frame into a hollow structural section column sized per plan. A one-half-inch thick cap plate sits atop the hollow structural section column. The connection uses a kerfed hollow structural section column with a knife plate extended a minimum of three-eighths of an inch beyond the column face, connected per schedule where applicable. A five-sixteenth-inch fillet weld secures the assembly.
WF GIRDER PER PLAN HSS COLUMN PER PLAN PER 20/5.51 CAP PL 1/2" WF GIRDER EA SIDE AS OCCURS CONNECTION PER 20/S5.51 KERF HSS COLUMN + EXTEND KNIFE PLATE 3/8" MIN BEYOND COL FACE MIN 3/8" EXTEND KNIFE PL + CONNECT PER 20/S5.51 WHERE APPLICABLE 5/16
