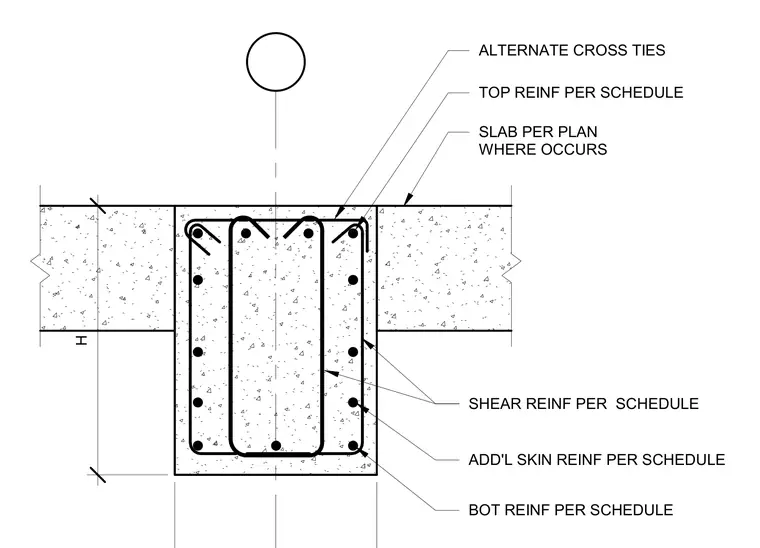

A cast-in-place concrete beam integrates with a concrete slab as indicated per plan where it occurs. The beam section contains top reinforcement, bottom reinforcement, and additional skin reinforcement sized per schedule. Shear reinforcement consists of closed stirrups with alternate cross ties spaced across the section.
H TOP REINF PER SCHEDULE SLAB PER PLAN WHERE OCCURS SHEAR REINF PER SCHEDULE ADD'L SKIN REINF PER SCHEDULE BOT REINF PER SCHEDULE ALTERNATE CROSS TIES
