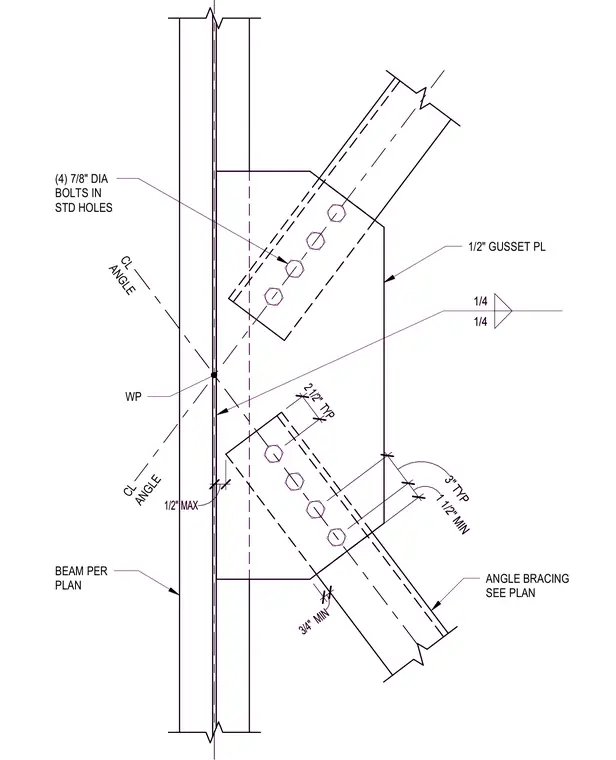

Angle bracing intersects a structural beam per plan at a common working point with a half-inch thick gusset plate. The bracing members connect to the gusset plate using four seven-eighths inch diameter bolts in standard holes on each side. The gusset plate is welded to the supporting beam with quarter-inch fillet welds. Minimum edge distances and standard spacing dimensions govern the bolt and plate layout.
1/2" GUSSET PL 1/4 1/4 1 1/2" MIN 3" TYP ANGLE BRACING SEE PLAN BEAM PER PLAN WP (4) 7/8" DIA BOLTS IN STD HOLES CL ANGLE CL ANGLE 2 1/2" TYP 3/4" MIN 1/2" MAX 1/2" GUSSET PL 1/4 1/4 1 1/2" MIN 3" TYP ANGLE BRACING SEE PLAN BEAM PER PLAN WP (4) 7/8" DIA BOLTS IN STD HOLES CL ANGLE CL ANGLE 2 1/2" TYP 3/4" MIN 1/2" MAX
