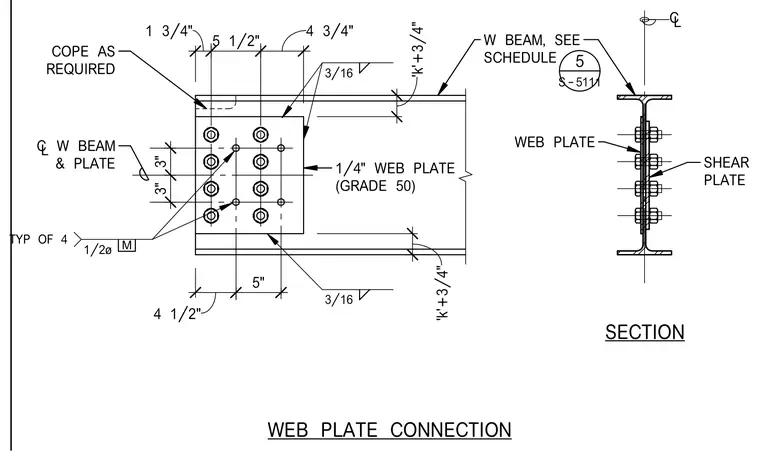

A wide flange beam connects to a shear plate using a quarter-inch Grade 50 steel web plate. The web plate is attached with a three-sixteenths inch fillet weld on both sides and features a top flange cope as required. Eight one-half inch diameter bolts fasten the web plate in a four-by-two grid pattern. Dimensions indicate edge distances of one and three-quarters inches and four and one-half inches, with a three-inch vertical bolt spacing and five-inch horizontal spacing.
3" 3" 1 3/4" 5 1/2" 4 3/4" 3/16 3/16 M TYP OF 4 1/2ø W BEAM & PLATE C L 4 1/2" 5" 'k'+3/4" 1/4" WEB PLATE (GRADE 50) 'k'+3/4" COPE AS REQUIRED W BEAM, SEE SCHEDULE WEB PLATE SHEAR PLATE C L SECTION WEB PLATE CONNECTION S-5111 5
