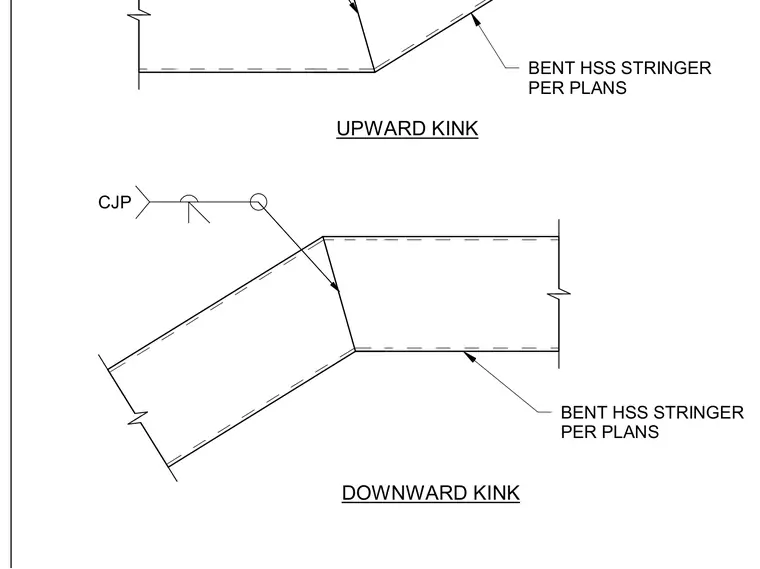

Bent hollow structural section stair stringers feature directional angle changes spliced with complete joint penetration welds. The assembly accommodates both upward and downward kinks in the stair framing profile as specified on the structural plans.
BENT HSS STRINGER PER PLANS DOWNWARD KINK UPWARD KINK BENT HSS STRINGER PER PLANS CJP
