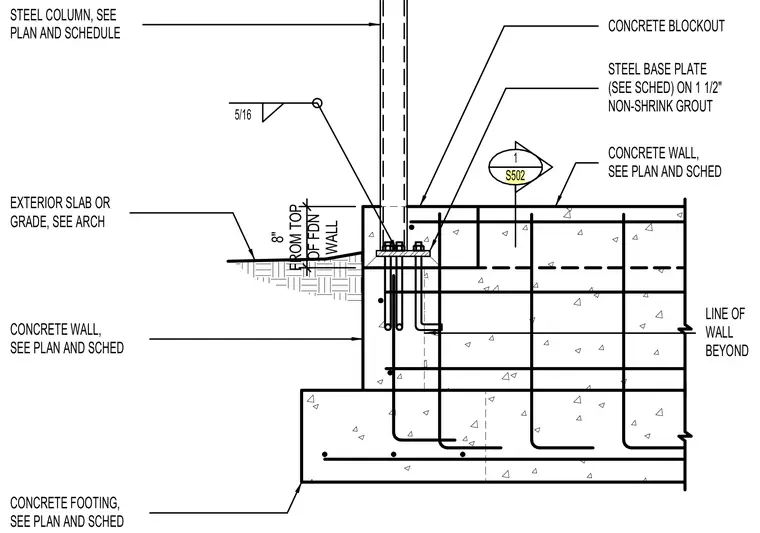

A steel column connects to a steel base plate mounted on one and a half inches of non-shrink grout over a concrete blockout in the foundation wall. The base plate is secured with anchor bolts extending into the reinforced concrete foundation wall and footing assembly. A fillet weld of five-sixteenths inch size connects the column flange to the base plate. Exterior slab or grade transitions adjacent to the concrete wall below the column base.
EXTERIOR SLAB OR GRADE, SEE ARCH CONCRETE WALL, SEE PLAN AND SCHED STEEL COLUMN, SEE PLAN AND SCHEDULE STEEL BASE PLATE (SEE SCHED) ON 1 1/2" NON-SHRINK GROUT CONCRETE BLOCKOUT CONCRETE WALL, SEE PLAN AND SCHED CONCRETE FOOTING, SEE PLAN AND SCHED LINE OF WALL BEYOND 5/16 1 S502 8" FROM TOP OF FDN WALL
