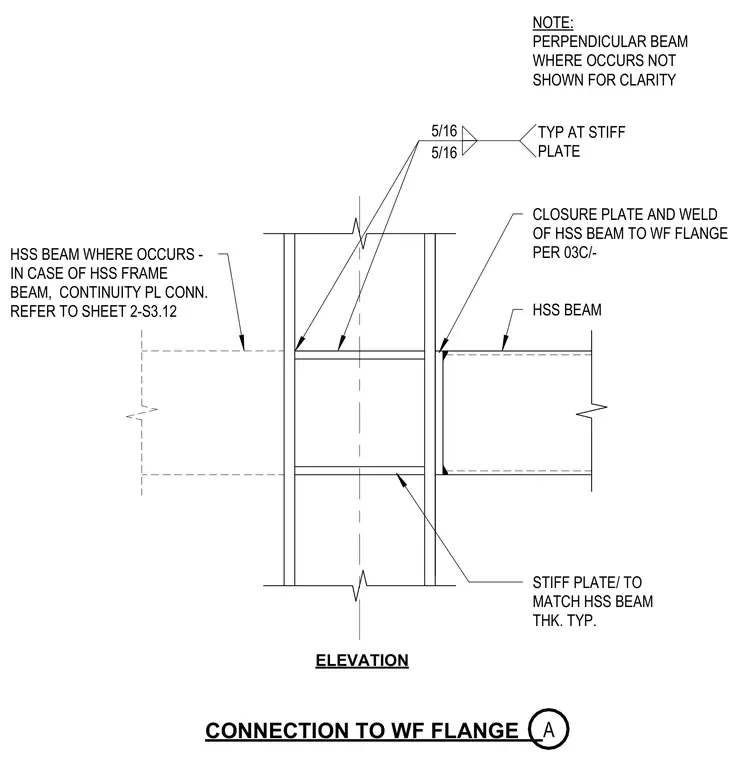

An HSS beam connects to the flange of a wide flange column using a closure plate and perimeter welds. Stiffener plates match the thickness of the HSS beam and are welded to the column web with five-sixteenths inch fillet welds. A perpendicular beam is omitted for clarity where applicable, and continuity plate connections for HSS frame beams are referenced elsewhere. A closure plate bridges the HSS beam end to the wide flange column.
ELEVATION HSS BEAM STIFF PLATE/ TO MATCH HSS BEAM THK. TYP. CONNECTION TO WF FLANGE CLOSURE PLATE AND WELD OF HSS BEAM TO WF FLANGE PER 03C/- 5/16 5/16 TYP AT STIFF PLATE NOTE: PERPENDICULAR BEAM WHERE OCCURS NOT SHOWN FOR CLARITY A HSS BEAM WHERE OCCURS - IN CASE OF HSS FRAME BEAM, CONTINUITY PL CONN. REFER TO SHEET 2-S3.12
