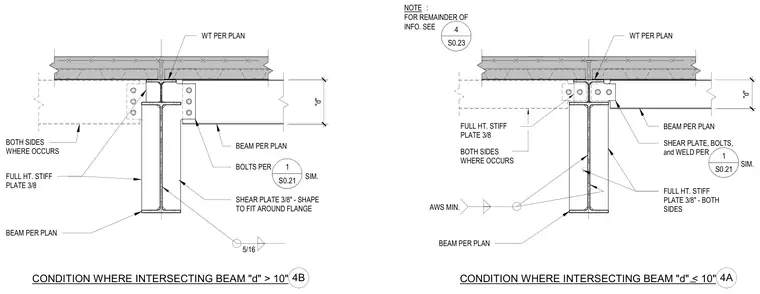

An intersecting steel beam frames into a supporting beam using a structural tee section sized per plan. Full-height three-eighth-inch stiffener plates are welded to both sides of the web where required. For beam depths greater than ten inches, a three-eighth-inch shear plate is shaped to fit around the flange and bolted with similar connections. For beam depths ten inches or less, standard shear plates, bolts, and five-sixteenth-inch fillet welds secure the assembly.
CONDITION WHERE INTERSECTING BEAM "d" < 10" 4A WT PER PLAN BEAM PER PLAN NOTE : FOR REMAINDER OF INFO. SEE BOTH SIDES WHERE OCCURS BEAM PER PLAN SHEAR PLATE, BOLTS, and WELD PER SIM. FULL HT. STIFF PLATE 3/8" - BOTH SIDES _ FULL HT. STIFF PLATE 3/8 CONDITION WHERE INTERSECTING BEAM "d" > 10" 4B WT PER PLAN BEAM PER PLAN BOTH SIDES WHERE OCCURS BEAM PER PLAN BOLTS PER SIM. SHEAR PLATE 3/8" - SHAPE TO FIT AROUND FLANGE FULL HT. STIFF PLATE 3/8 1 S0.21 1 S0.21 4 S0.23 "d" 5/16 AWS MIN. "d"
