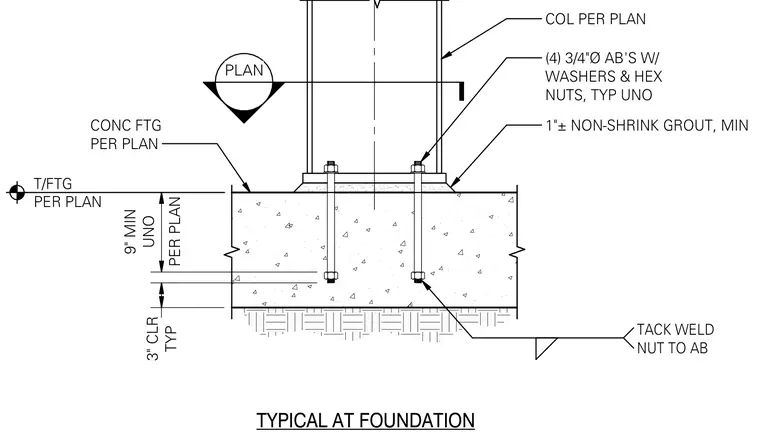

A structural steel column bears on a concrete foundation with a base plate secured by four three-quarter-inch diameter anchor bolts equipped with washers and hex nuts. The anchor bolts extend into the concrete footing with a minimum of nine inches embedment unless noted otherwise and maintain a standard three-inch concrete clear cover. A one-inch plus or minus thick non-shrink grout layer fills the space beneath the base plate. Nuts at the embedded ends of the anchor bolts are tack welded.
PLAN COL PER PLAN (4) 3/4"Ø AB'S W/ WASHERS & HEX NUTS, TYP UNO 1"± NON-SHRINK GROUT, MIN CONC FTG PER PLAN PER PLAN 9" MIN UNO TYP 3" CLR TYPICAL AT FOUNDATION TACK WELD NUT TO AB T/FTG PER PLAN
