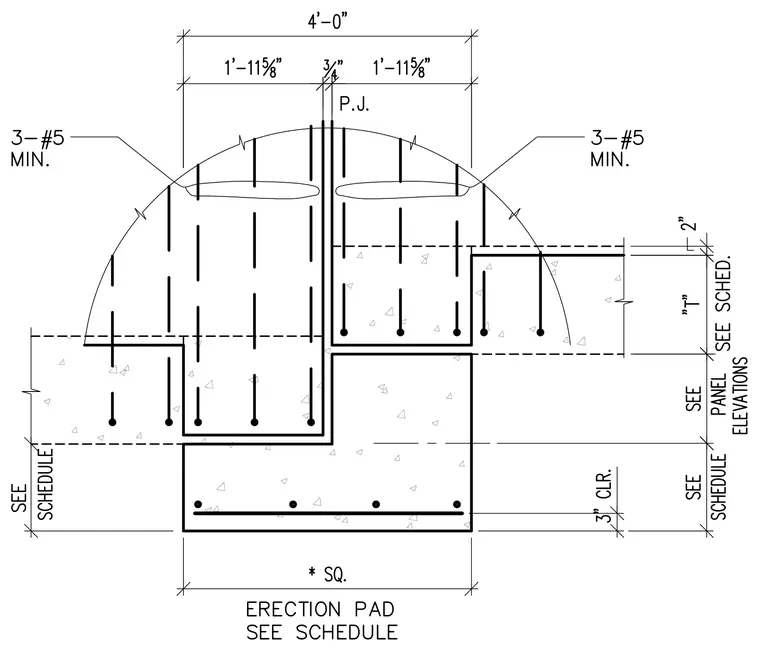

Precast concrete panels bear on a concrete erection pad featuring a three-quarter-inch perimeter joint designated as P.J. The erection pad and panels include reinforced concrete sections detailed with three number five minimum reinforcing bars. Vertical and horizontal dimensions are referenced to the schedule and panel elevations, including a three-inch clear cover for the footing. The assembly accommodates differential movement and load transfer between adjacent precast elements.
