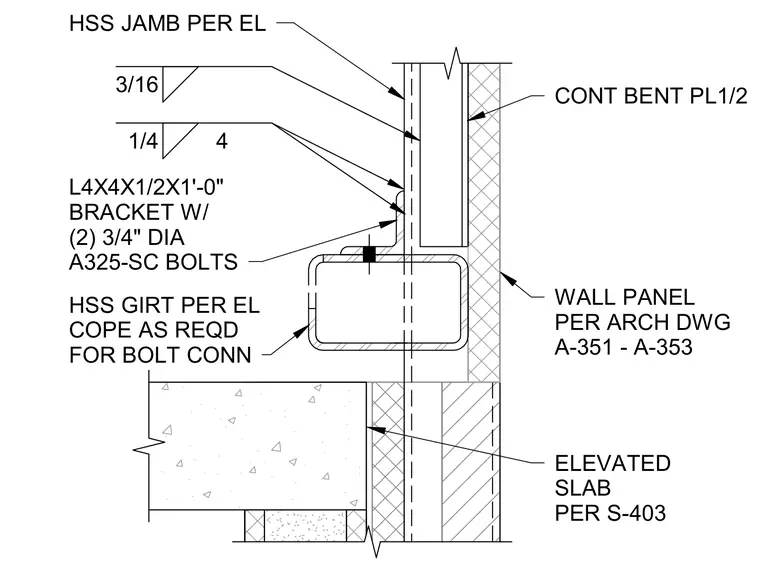

An HSS girt connects to an HSS jamb with a 1/4-inch fillet weld and is coped as required for a bolted connection. An L4x4x1/2 by 1-foot-0-inch angle bracket fastens to the girt using two 3/4-inch diameter A325-SC bolts. A continuous bent plate measuring 1/2 inch ties into the assembly with a 3/16-inch fillet weld to support the wall panel. The entire assembly sits above an elevated concrete slab.
1/4 4 HSS GIRT PER EL COPE AS REQD FOR BOLT CONN CONT BENT PL1/2 WALL PANEL PER ARCH DWG A-351 - A-353 3/16 L4X4X1/2X1'-0" BRACKET W/ (2) 3/4" DIA A325-SC BOLTS HSS JAMB PER EL ELEVATED SLAB PER S-403
