A structural kicker brace connects to a roof deck or floor deck using a 3/16-inch bent plate attached across a minimum of three deck flutes. The kicker attaches to the bent plate using three number ten screws. For floor decks and parallel roof decks, the bent plate is secured to the deck using three shot pins or powder-actuated fasteners. For perpendicular roof decks, the bent plate is secured with three number ten screws and ties into the supporting roof joist with fillet welds. All powder-actuated fasteners comply with the cold-formed section of the general structural notes.

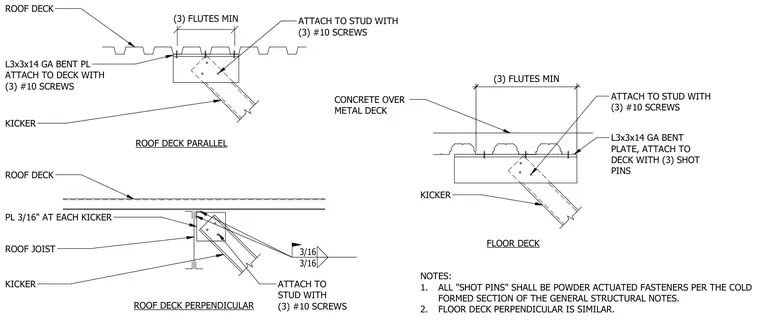

(3) FLUTES MIN FLOOR DECK ROOF DECK PERPENDICULAR ROOF DECK PARALLEL NOTES: 1. ALL "SHOT PINS" SHALL BE POWDER ACTUATED FASTENERS PER THE COLD FORMED SECTION OF THE GENERAL STRUCTURAL NOTES. 2. FLOOR DECK PERPENDICULAR IS SIMILAR. KICKER CONCRETE OVER METAL DECK KICKER KICKER PL 3/16" AT EACH KICKER ATTACH TO STUD WITH (3) #10 SCREWS ROOF JOIST ROOF DECK ROOF DECK ATTACH TO STUD WITH (3) #10 SCREWS L3x3x14 GA BENT PL ATTACH TO DECK WITH (3) #10 SCREWS L3x3x14 GA BENT PLATE, ATTACH TO DECK WITH (3) SHOT PINS ATTACH TO STUD WITH (3) #10 SCREWS 3/16 3/16 (3) FLUTES MIN
