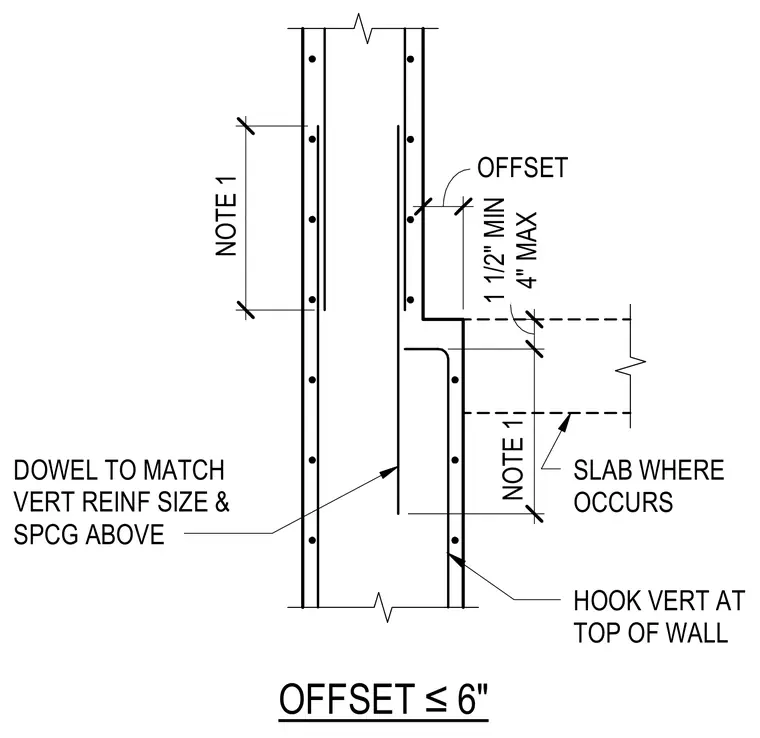

Concrete wall reinforcement at a thickness change requires an offset of six inches or less. Vertical reinforcement continues across the transition with a specified offset, maintaining a minimum of one and one-half inches and a maximum of four inches. Dowels match the size and spacing of the vertical reinforcement above. A vertical bar hooks at the top of the wall where a slab occurs.
SLAB WHERE OCCURS HOOK VERT AT TOP OF WALL DOWEL TO MATCH VERT REINF SIZE & SPCG ABOVE NOTE 1 OFFSET NOTE 1 1 1/2" MIN 4" MAX OFFSET ≤6" 27 1/2" 6" 4 3/8" 24 5/8"
