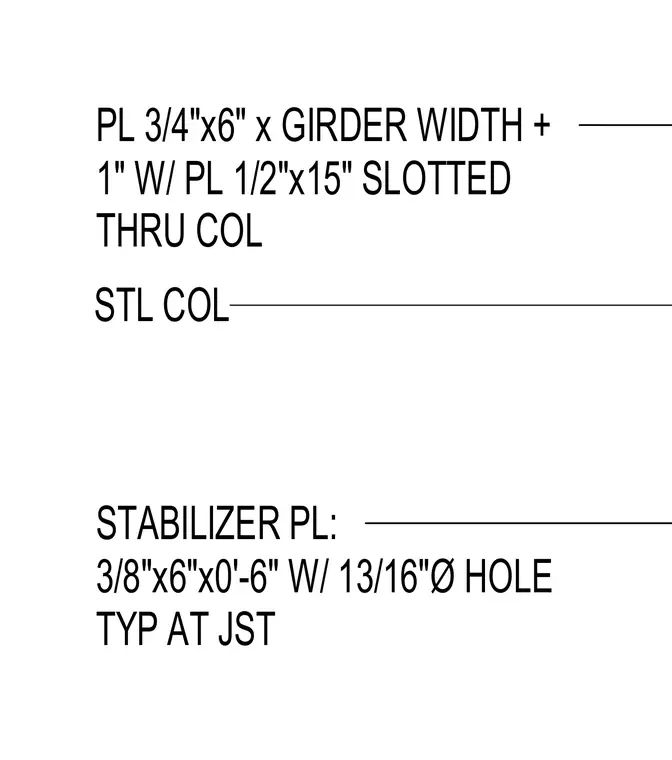

A three-quarter-inch by six-inch tie plate sized to girder width plus one inch connects with a one-half-inch by fifteen-inch plate slotted through the steel column. A three-eighths-inch by six-inch by zero-foot-six-inch stabilizer plate featuring a thirteen-sixteenths-inch diameter hole is provided typically at the joist and steel column junction.
PL 3/4"x6" x GIRDER WIDTH + 1" W/ PL 1/2"x15" SLOTTED THRU COL STABILIZER PL: 3/8"x6"x0'-6" W/ 13/16"Ø HOLE TYP AT JST STL COL
