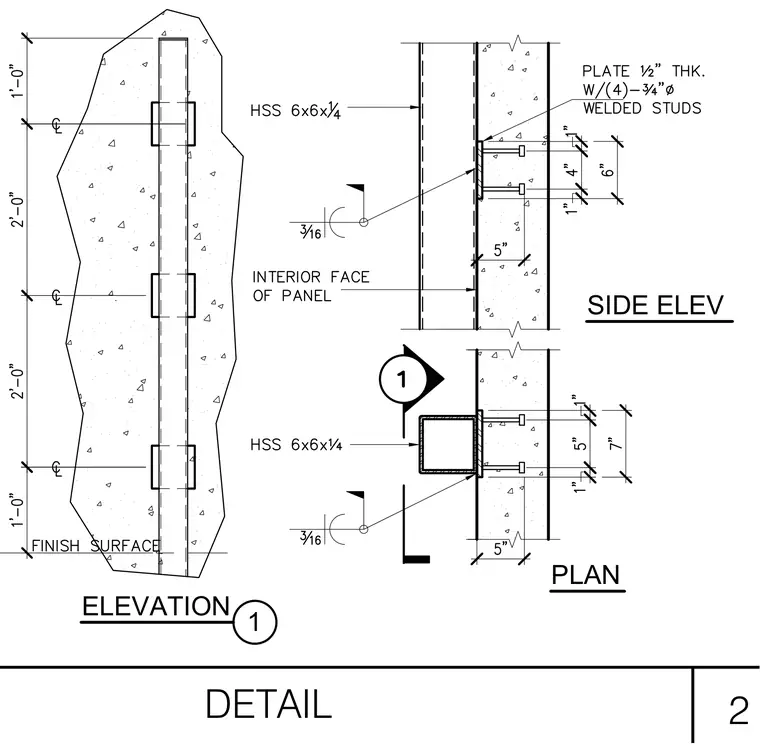

An HSS 6x6x1/4 hollow structural section connects to a concrete wall panel using a half-inch thick embedded steel plate with four three-quarter-inch diameter welded studs. The side elevation and plan views show the structural embedded plate anchored into the interior face of the concrete panel. Fillet welds of three-sixteenths inch secure the hollow structural section to the embedded plate. Vertical spacing dimensions indicate center-to-center distances between the connection assemblies along the panel height.
