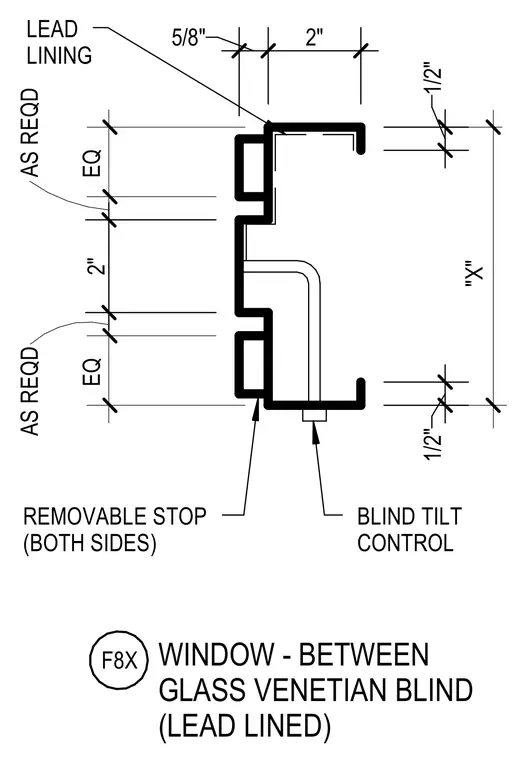

This window frame assembly incorporates a between-glass Venetian blind and radiation shielding lead lining as required. Removable stops are provided on both sides of the frame for maintenance access. A blind tilt control mechanism extends through the frame assembly. Dimensioning includes a 2-inch main channel depth, 5/8-inch offset, and equal spacing configurations.
1/2" 1/2" 2" 5/8" 2" WINDOW - BETWEEN GLASS VENETIAN BLIND (LEAD LINED) F8X REMOVABLE STOP (BOTH SIDES) BLIND TILT CONTROL LEAD LINING AS REQD AS REQD EQ EQ "X"
