Structural · S-EAVH2

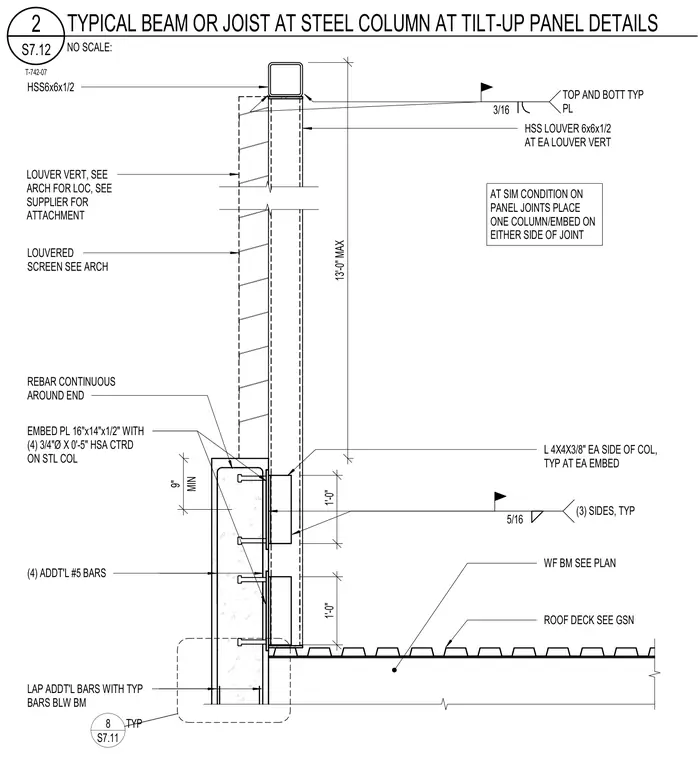

Beam or Joist at Steel Column and Tilt-Up Panel

Materials

Reinforced Concrete Steel

Elements

Columns Beams Walls Roofs Decks Arches Anchors / Embeds Reinforcing

Connections

HSS Connection Deck Attachment Embed Plate

About this detail

A wide-flange beam and roof deck bear at a steel column anchored to a tilt-up concrete wall panel, supporting an HSS louvered screen above. The steel column features an embed plate measuring 16 inches by 14 inches by 1/2 inch with four 3/4-inch diameter by 0'-5" HSA anchors centered on the column. Angles sized at 4x4x3/8 inches are attached to each side of the column at the embed with 5/16-inch fillet welds on three sides typically. Additional #5 reinforcing bars are provided at the concrete panel, lapped with typical bars below the beam and running continuous around the end with a minimum 9-inch lap. An HSS 6x6x1/2 vertical member supports the louvered screen assembly, tied back with top and bottom plates welded with 3/16-inch welds. At similar conditions on panel joints, one column and embed are placed on either side of the joint.
