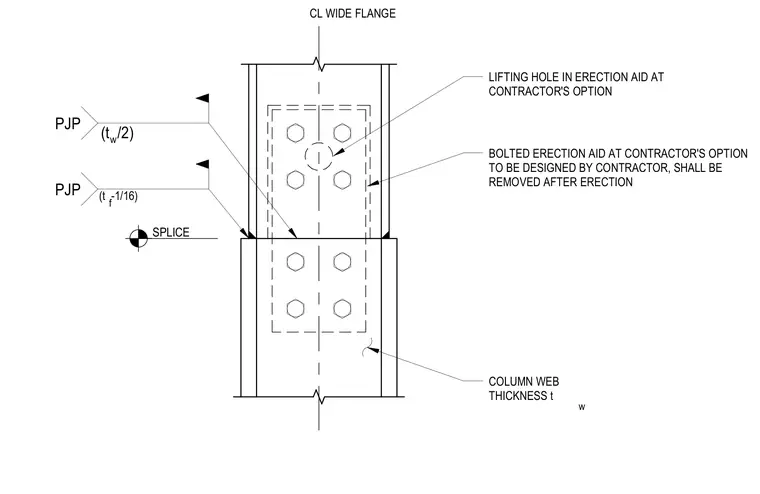

The upper wide-flange column connects to the lower wide-flange column using partial-joint-penetration groove welds sized at half the web thickness for the web and flange thickness minus one-sixteenth of an inch for the flange. A bolted erection aid with an optional lifting hole is provided at the contractor's option and must be removed after erection.
CL WIDE FLANGE w (t -1/16) f COLUMN WEB THICKNESS t w BOLTED ERECTION AID AT CONTRACTOR'S OPTION TO BE DESIGNED BY CONTRACTOR, SHALL BE REMOVED AFTER ERECTION LIFTING HOLE IN ERECTION AID AT CONTRACTOR'S OPTION SPLICE (t /2) PJP PJP
