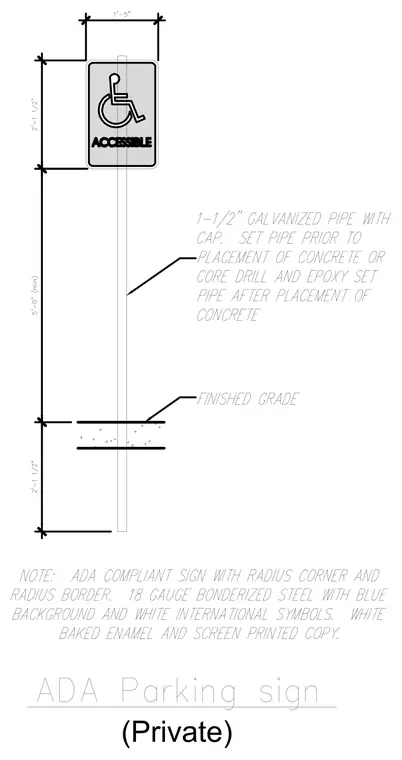

An ADA compliant accessible parking sign features a radius corner and radius border constructed from eighteen gauge bonderized steel with a blue background and white international symbols, finished with white baked enamel and screen printed copy. The sign mounts to a one and one-half inch galvanized pipe with a cap, set prior to the placement of concrete or core drilled and epoxy set after concrete placement. Vertical clearances maintain a minimum height above the finished grade to the bottom of the sign.
