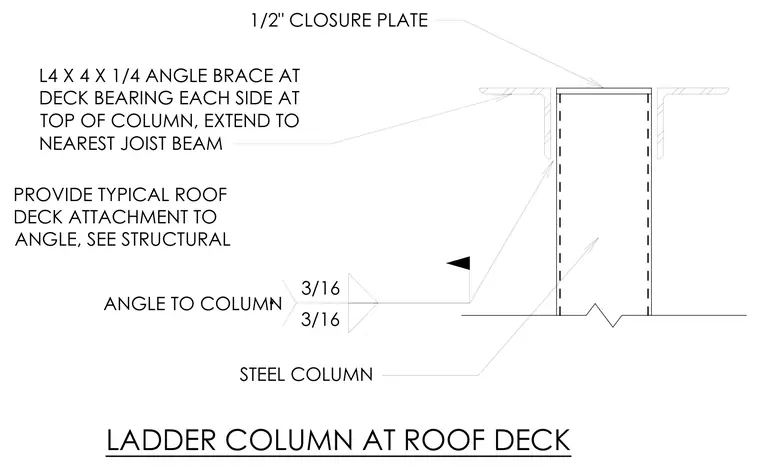

A steel column terminates at the roof deck with a one-half-inch closure plate capping the top. An L4 x 4 x 1/4 angle brace extends on each side at the deck bearing, running out to the nearest joist beam. The angles are welded to the steel column with three-sixteenth-inch fillet welds. Typical roof deck attachment to the angle is provided per structural drawings.
3/16 3/16 ANGLE TO COLUMN STEEL COLUMN PROVIDE TYPICAL ROOF DECK ATTACHMENT TO ANGLE, SEE STRUCTURAL 1/2" CLOSURE PLATE L4 X 4 X 1/4 ANGLE BRACE AT DECK BEARING EACH SIDE AT TOP OF COLUMN, EXTEND TO NEAREST JOIST BEAM LADDER COLUMN AT ROOF DECK 1 x
