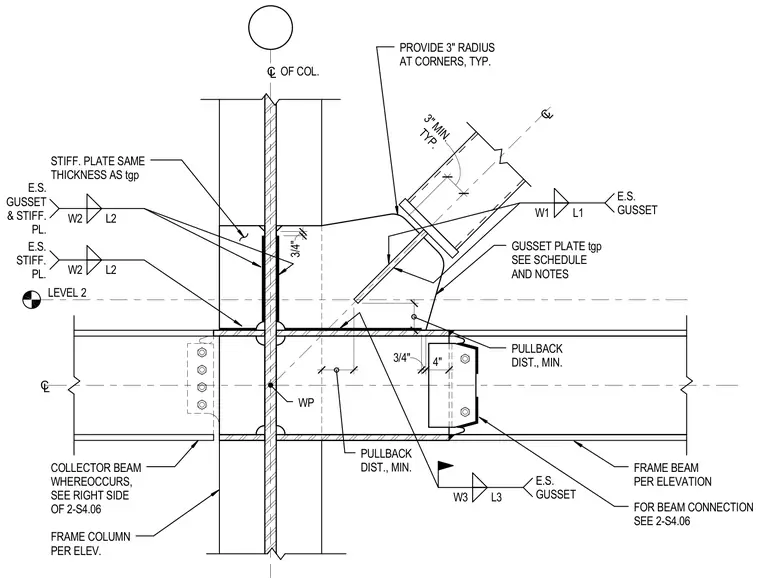

A brace-to-column web connection at Level 2 features a gusset plate whose thickness is specified per schedule. A stiffener plate matching the gusset plate thickness is welded to the column web with a three-inch radius at corners. The diagonal brace frames into the gusset plate with weld callouts on each side. A framing beam connects to the column flange, with a collector beam included where it occurs. Minimum pullback distances and work points are dimensioned relative to the column centerline.
GUSSET PLATE tgp SEE SCHEDULE AND NOTES FOR BEAM CONNECTION SEE 2-S4.06 FRAME BEAM PER ELEVATION FRAME COLUMN PER ELEV. COLLECTOR BEAM WHEREOCCURS, SEE RIGHT SIDE OF 2-S4.06 LEVEL 2 STIFF. PLATE SAME THICKNESS AS tgp PROVIDE 3" RADIUS AT CORNERS, TYP. CL CL CL OF COL. W1 L1 E.S. GUSSET W3 L3 E.S. GUSSET WP 3/4" 4" TYP. 3" MIN. 4 5/8" PULLBACK DIST., MIN. 5 1/2" PULLBACK DIST., MIN. 3/4" W2 L2 E.S. GUSSET & STIFF. PL. W2 L2 E.S. STIFF. PL.
