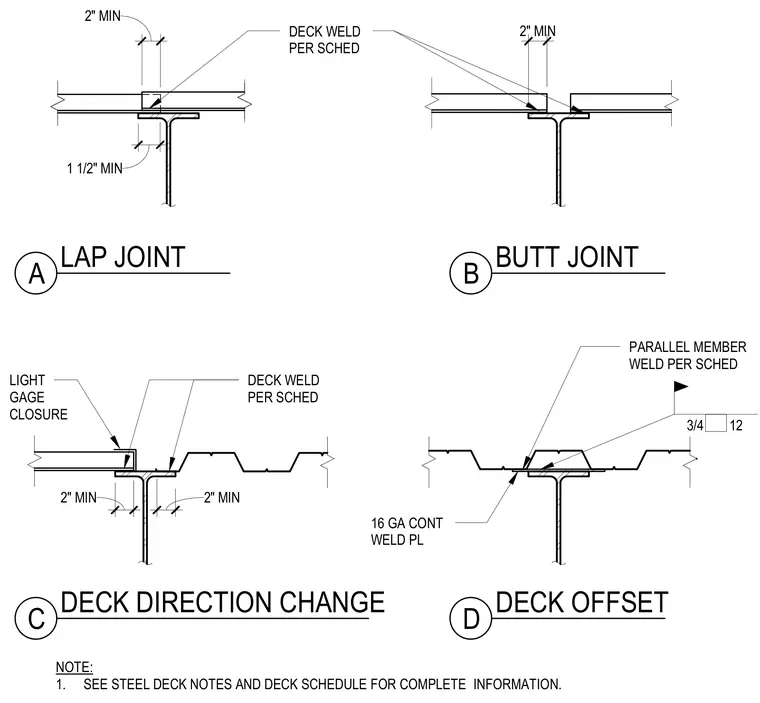

Steel floor or roof decking bears on structural steel beams with specific weld and edge distance requirements for different joint conditions. Lap joints and butt joints require minimum two-inch end bearings and scheduled deck welds. Deck direction changes incorporate light gauge closures with two-inch bearing clearances. Deck offsets utilize a sixteen-gauge continuous weld plate beneath parallel members with specified slope and weld symbols.
NOTE: 1. SEE STEEL DECK NOTES AND DECK SCHEDULE FOR COMPLETE INFORMATION. DECK WELD PER SCHED PARALLEL MEMBER WELD PER SCHED 16 GA CONT WELD PL 1 1/2" MIN 2" MIN DECK WELD PER SCHED 2" MIN 2" MIN 2" MIN LIGHT GAGE CLOSURE A LAP JOINT B BUTT JOINT C DECK DIRECTION CHANGE D DECK OFFSET 3/4 12
