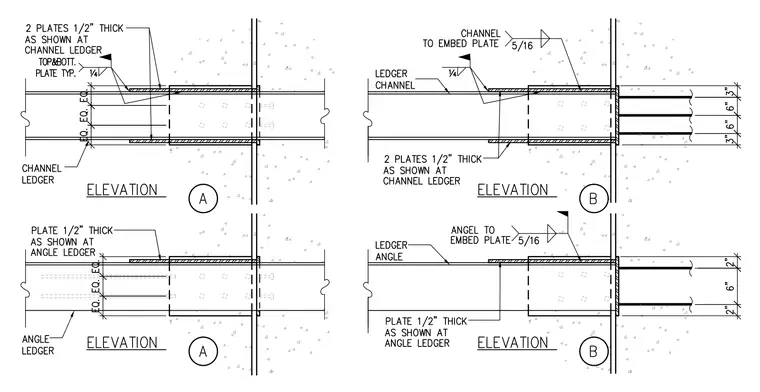

Two pairs of elevations detail precast concrete panel return connections at the ledger level using channel and angle configurations. The channel ledger details incorporate two one-half-inch thick plates with top and bottom plate welds of one-quarter inch, alongside five-sixteenth inch welds connecting the channel to the embed plate. The angle ledger details utilize a single one-half-inch thick plate with five-sixteenth inch welds securing the angle to the embed plate. Spacing dimensions of two, three, and six inches organize the hardware layouts across the concrete panel returns.
