Typical Exterior High Parapet Bracing

Materials

Steel Glass / Glazing Metal (misc.)

Elements

Columns Walls Curtain Walls Roofs Parapets Decks Arches Bracing

Connections

HSS Connection Bracing Connection Welded Connection Deck Attachment

About this detail

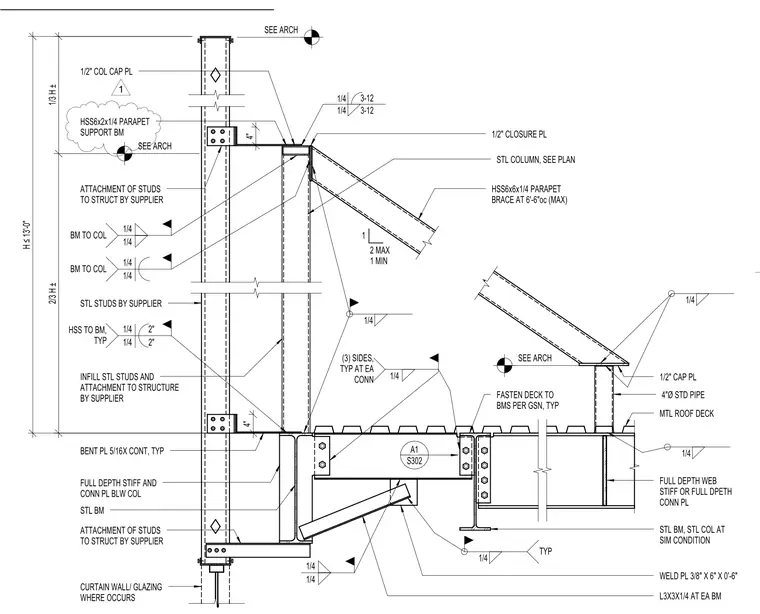

An exterior high parapet assembly framed with structural steel columns and hollow structural section members includes an HSS6x2x1/4 parapet support beam and HSS6x6x1/4 braces spaced at six feet six inches on center maximum. The steel columns feature a one-half-inch column cap plate and a one-half-inch closure plate at the top connection, welded with one-quarter-inch fillet welds. Infill steel studs and curtain wall glazing attach to the structure per supplier requirements, backed by a continuous five-sixteenth-inch bent plate and L3x3x1/4 angles at each beam. Metal roof deck fastens to the framing beams according to general structural notes, supported by full-depth web stiffeners and connection plates. Additional stability is provided by a four-inch standard pipe column assembly and a three-eighth-inch by six-inch by six-inch welded plate.
