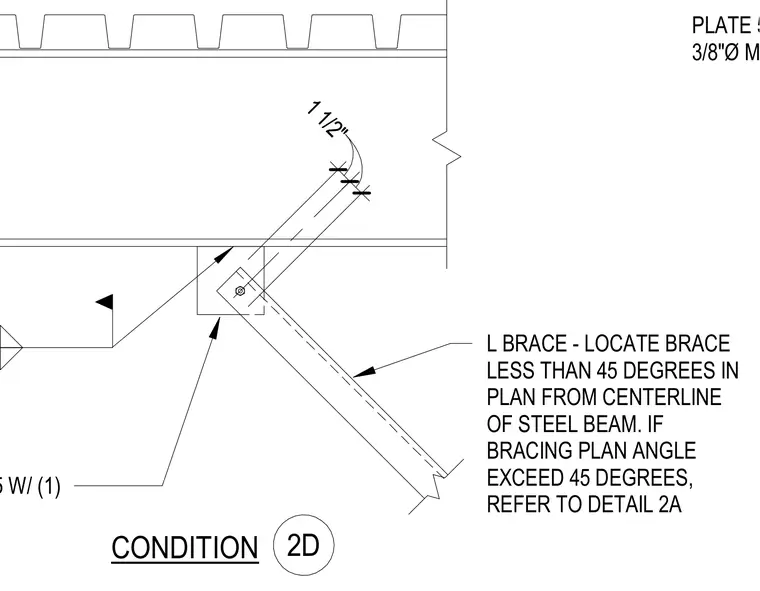

A lateral brace connects to the underside of a steel beam using a five-by-five-inch plate of five-sixteenth-inch thickness and one three-eighths-inch diameter machine bolt. The brace must be located less than forty-five degrees in plan from the centerline of the steel beam. If the bracing plan angle exceeds forty-five degrees, reference is made to detail 2A.
CONDITION 2D PLATE 5/16x5x5 W/ (1) 3/8"Ø M. BOLT L BRACE - LOCATE BRACE LESS THAN 45 DEGREES IN PLAN FROM CENTERLINE OF STEEL BEAM. IF BRACING PLAN ANGLE EXCEED 45 DEGREES, REFER TO DETAIL 2A PLATE 5/16x5x5 W/ (1) 1 1/2" 1 1/2"
