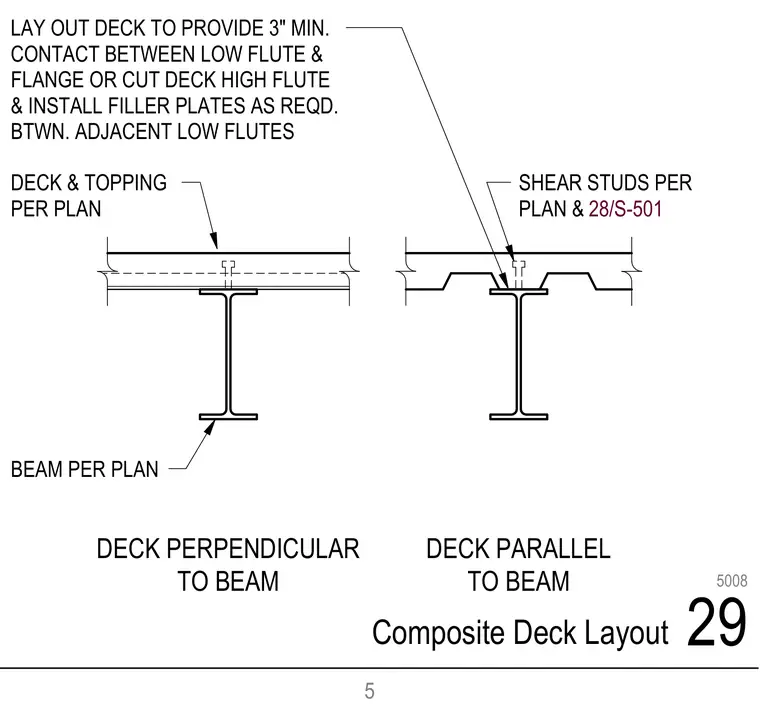

Composite metal deck and concrete topping bear on structural steel beams sized per plan, with shear studs welded through the deck into the beam flange. The deck is laid out to provide a minimum of three inches of contact between the low flute and the flange. Where necessary, the high flute is cut and filler plates are installed between adjacent low flutes.
DECK PARALLEL TO BEAM DECK PERPENDICULAR TO BEAM BEAM PER PLAN DECK & TOPPING PER PLAN SHEAR STUDS PER PLAN & LAY OUT DECK TO PROVIDE 3" MIN. CONTACT BETWEEN LOW FLUTE & FLANGE OR CUT DECK HIGH FLUTE & INSTALL FILLER PLATES AS REQD. BTWN. ADJACENT LOW FLUTES 28/S-501 5 29 Composite Deck Layout 5008
