A buckling-restrained brace casing extends into a concrete slab with required blockout conditions. One-inch thick low-density expanded polystyrene bead board is provided on all sides of the casing for the portion embedded in concrete, with an end clearance equal to the maximum of stroke "c" and three inches. The indicated clearances represent the required final installed state of the buckling-restrained brace, though larger blockouts may be necessary for installation. The expanded polystyrene material is provided by others.

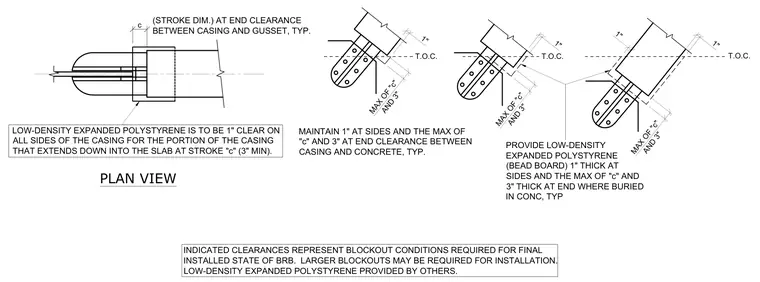

PLAN VIEW LOW-DENSITY EXPANDED POLYSTYRENE IS TO BE 1" CLEAR ON ALL SIDES OF THE CASING FOR THE PORTION OF THE CASING THAT EXTENDS DOWN INTO THE SLAB AT STROKE "c" (3" MIN). c (STROKE DIM.) AT END CLEARANCE BETWEEN CASING AND GUSSET, TYP. 1" T.O.C. 1" 1" T.O.C. T.O.C. MAX OF "c" AND 3" 1" PROVIDE LOW-DENSITY EXPANDED POLYSTYRENE (BEAD BOARD) 1" THICK AT SIDES AND THE MAX OF "c" AND 3" THICK AT END WHERE BURIED IN CONC, TYP MAINTAIN 1" AT SIDES AND THE MAX OF "c" AND 3" AT END CLEARANCE BETWEEN CASING AND CONCRETE, TYP. MAX OF "c" AND 3" MAX OF "c" AND 3" INDICATED CLEARANCES REPRESENT BLOCKOUT CONDITIONS REQUIRED FOR FINAL INSTALLED STATE OF BRB. LARGER BLOCKOUTS MAY BE REQUIRED FOR INSTALLATION. LOW-DENSITY EXPANDED POLYSTYRENE PROVIDED BY OTHERS.
