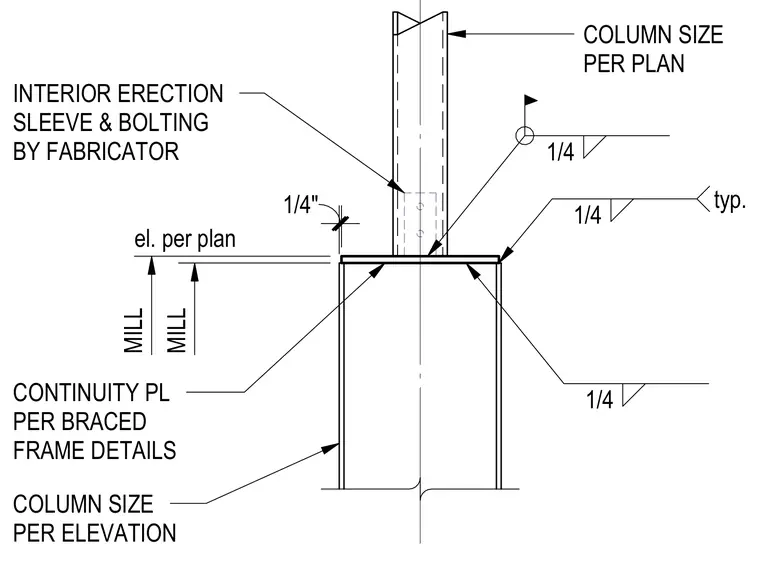

An interior column splice connection aligns an upper column with a lower column sized per plan and elevation. An internal erection sleeve and bolting provided by the fabricator secure the upper column into position. A horizontal continuity plate per braced frame details sits between the column segments. Fillet welds of one-quarter inch size join the plates and column profiles, with elevations and mill finishes set per plan.
COLUMN SIZE PER ELEVATION COLUMN SIZE PER PLAN CONTINUITY PL PER BRACED FRAME DETAILS INTERIOR ERECTION SLEEVE & BOLTING BY FABRICATOR 1/4 1/4 typ. 1/4 MILL el. per plan MILL 1/4"
