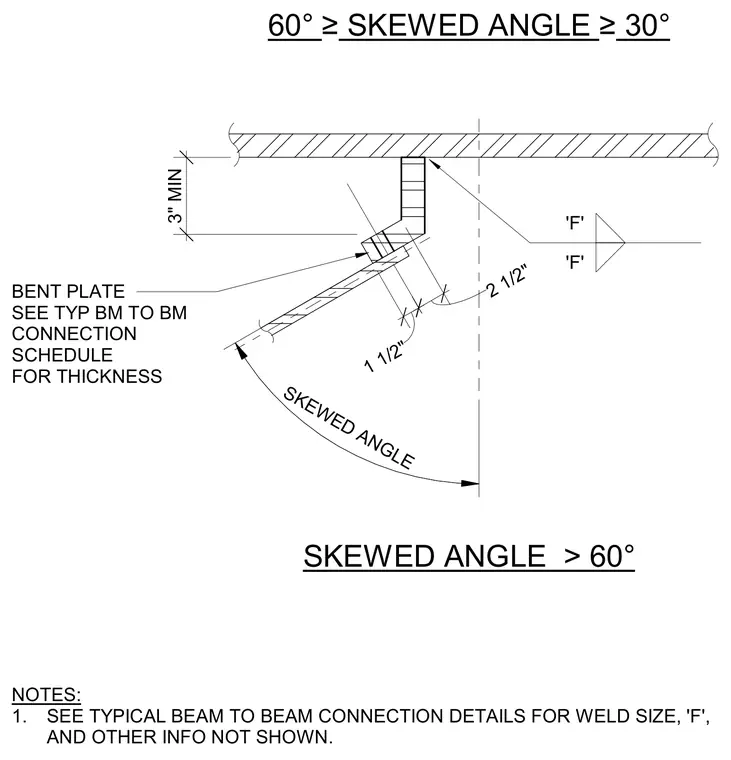

A bent plate connects a skewed steel beam to a supporting steel beam member for angles between thirty and sixty degrees. A three-inch minimum clearance is maintained at the top flange. Weld sizes and additional information are referenced from the typical beam to beam connection schedule and details.
60° ≥SKEWED ANGLE ≥30° SKEWED ANGLE > 60° BENT PLATE SEE TYP BM TO BM CONNECTION SCHEDULE FOR THICKNESS NOTES: 1. SEE TYPICAL BEAM TO BEAM CONNECTION DETAILS FOR WELD SIZE, 'F', AND OTHER INFO NOT SHOWN. SKEWED ANGLE 'F' 'F' 3" MIN 1 1/2" 2 1/2"
