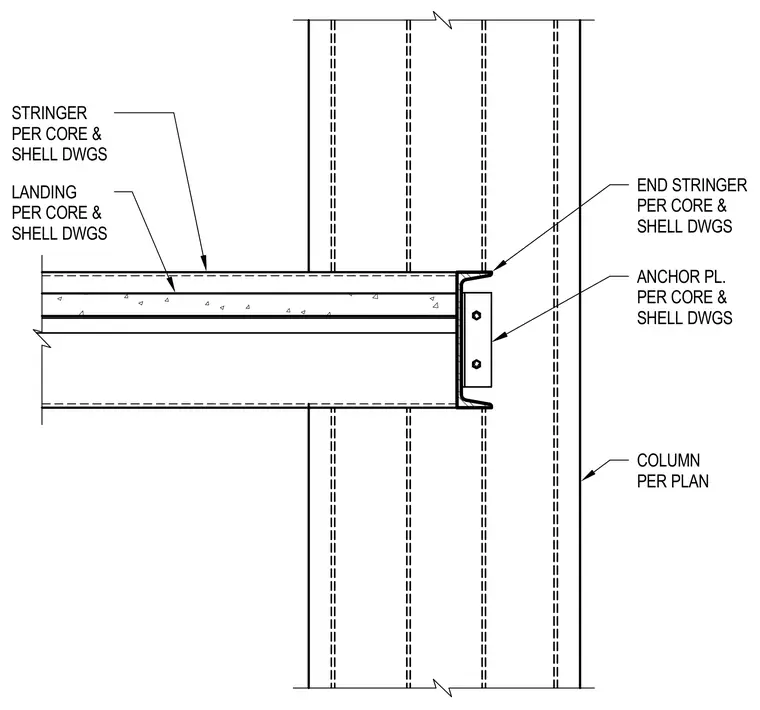

An end stringer connects to a structural column per plan using an anchor plate sized per core and shell drawings. The stair landing and stringer frame into the end assembly with dimensions and specifications coordinated with the core and shell drawings. The structural column receives the anchor plate which secures the end stringer channel in place.
END STRINGER PER CORE & SHELL DWGS LANDING PER CORE & SHELL DWGS STRINGER PER CORE & SHELL DWGS ANCHOR PL. PER CORE & SHELL DWGS COLUMN PER PLAN
