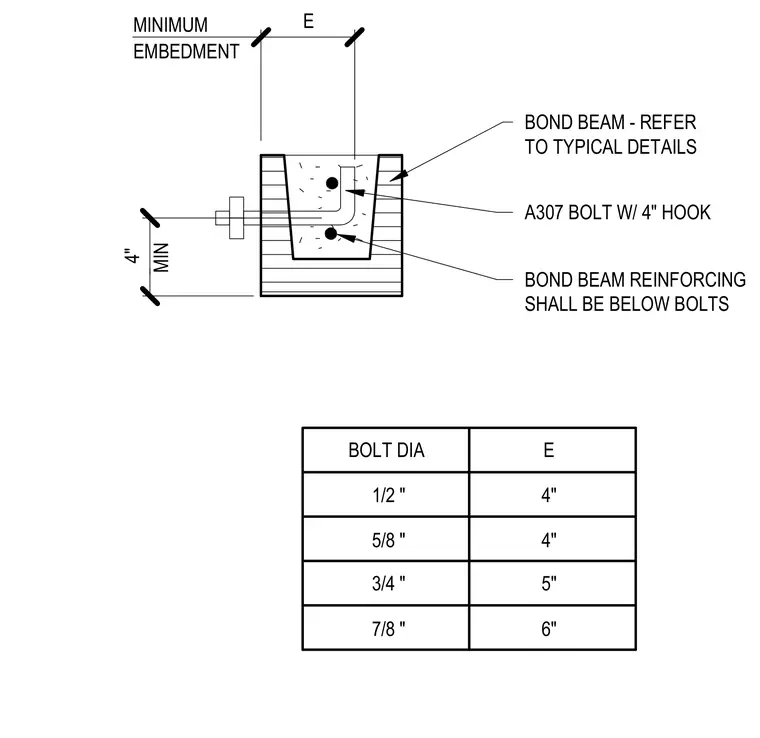

An ASTM A307 hook anchor bolt is embedded into a grouted concrete masonry unit bond beam, with bond beam reinforcing bars positioned below the bolts. The detail provides a minimum embedment dimension and incorporates a reference table pairing standard bolt diameters with required edge distances and embedment depths. The bond beam construction follows standard structural details with grouted cells encasing the hooked anchor.
4" MIN E EMBEDMENT 1/2 " 5/8 " 3/4 " 7/8 " E 4" 5" 6" 4" A307 BOLT W/ 4" HOOK MINIMUM BOLT DIA BOND BEAM - REFER TO TYPICAL DETAILS BOND BEAM REINFORCING SHALL BE BELOW BOLTS
