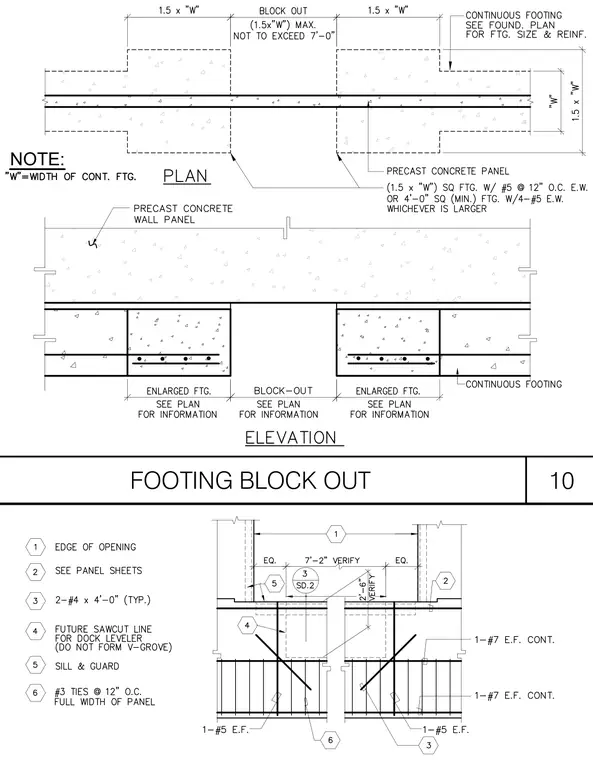

Continuous concrete footings are sized per the structural foundation plan, incorporating specified block outs with a maximum dimension of seven feet. Enlarged square footings are reinforced with number five bars at twelve inches on center each way or four feet square minimum with four number five bars each way, whichever is larger. Additional reinforcement includes continuous number seven bars and number five bars each face, with number three ties at twelve inches on center across the full width of the panel. Future sawcut lines for dock levelers are indicated without form v-grooves where applicable.
