Structural · S-E8R2X

Steel Beam Connection at Wing Wall Column

Materials

Elements

Beams Walls Roofs Floors / Slabs Decks Connections / Plates

About this detail

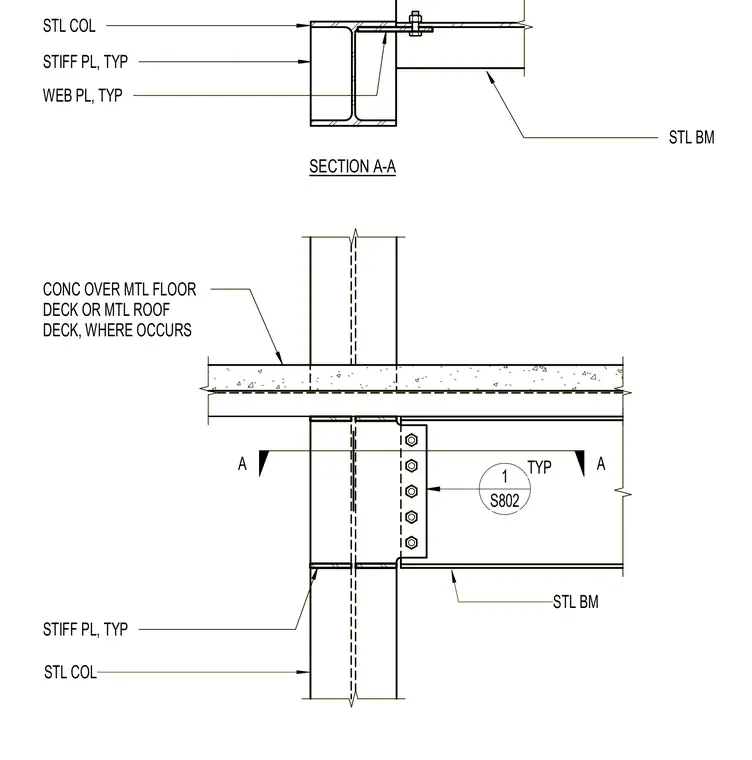

A structural steel beam frames into a steel column utilizing a bolted web connection. Typical stiffener plates are welded to the steel column web and flanges to reinforce the connection zone. Concrete over metal floor deck or metal roof deck bears against the column where it occurs. Section A-A provides a plan view of the beam flange connection to the column face.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
