Composite Slab Edge and Angle Details at Steel Beam

Materials

Elements

About this detail

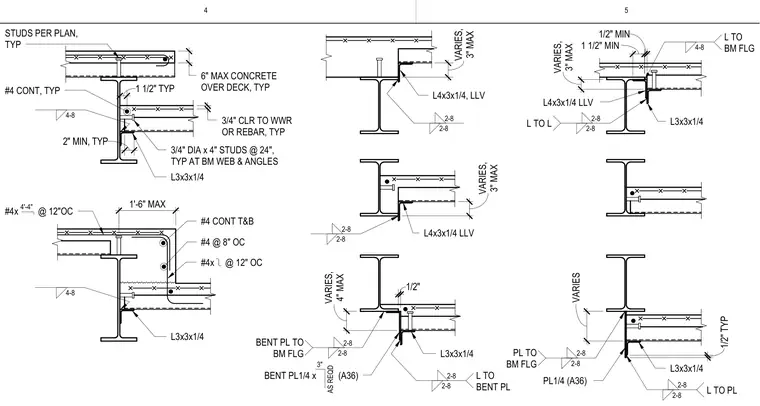

Composite metal deck and concrete slab assemblies bear on structural steel beams from midspan to support locations. The slab features a maximum of six inches of concrete over the deck with three-quarter-inch diameter by four-inch studs spaced at twenty-four inches on center typically at the beam web and angles. Reinforcing includes continuous number four bars top and bottom, number four bars at eight inches on center, and transverse number four bars at twelve inches on center with three-quarter-inch clearance to welded wire reinforcement or rebar. Steel connections utilize angles such as L4x3x1/4 with long leg vertical and L3x3x1/4, along with bent plates of A36 steel. Dimensions govern edge distances, clearances ranging from one-half inch to three inches maximum, and variable spacing across the span sequence.
