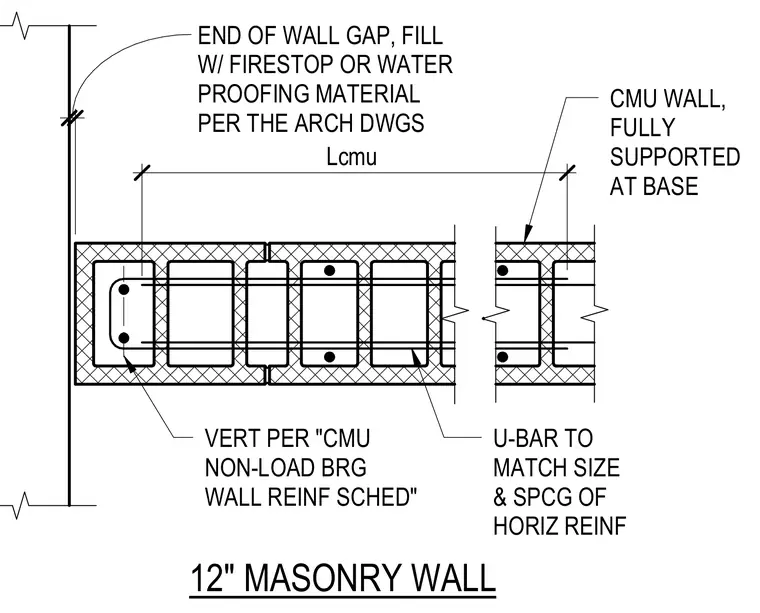

A twelve-inch concrete masonry unit non-load-bearing wall is reinforced vertically per the masonry reinforcement schedule, with U-bars matching the size and spacing of horizontal reinforcement at the wall end. The wall end maintains a gap filled with firestop or waterproofing material as specified in architectural drawings. The concrete masonry unit wall is fully supported at its base.
1/2" CMU WALL, FULLY SUPPORTED AT BASE END OF WALL GAP, FILL W/ FIRESTOP OR WATER PROOFING MATERIAL PER THE ARCH DWGS VERT PER "CMU NON-LOAD BRG WALL REINF SCHED" 12" MASONRY WALL 35" Lcmu U-BAR TO MATCH SIZE & SPCG OF HORIZ REINF
