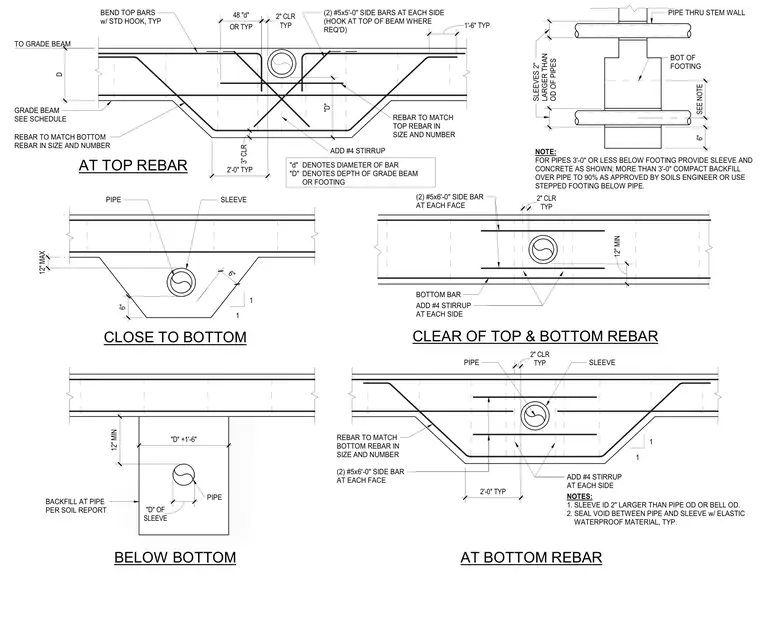

Penetrations for pipes running perpendicular to concrete grade beams and footings at various vertical alignments relative to the reinforcing steel. Pipe sleeves are specified with an inside diameter two inches larger than the pipe outside diameter or bell outside diameter, and the void is sealed with an elastic waterproof material. Top bar adjustments feature standard hooks and side bars with size and number matching the main reinforcement, supplemented by additional number four stirrups at each side. When pipes pass below the footing, the assembly incorporates specific backfill compaction requirements or stepped footing configurations depending on the depth.
AT TOP REBAR CLEAR OF TOP & BOTTOM REBAR AT BOTTOM REBAR CLOSE TO BOTTOM BELOW BOTTOM REBAR TO MATCH BOTTOM REBAR IN SIZE AND NUMBER GRADE BEAM SEE SCHEDULE TO GRADE BEAM BOTTOM BAR PIPE SLEEVE 1 1 SLEEVE PIPE PIPE BEND TOP BARS w/ STD HOOK, TYP (2) #5x5'-0" SIDE BARS AT EACH SIDE (HOOK AT TOP OF BEAM WHERE REQ'D) REBAR TO MATCH TOP REBAR IN SIZE AND NUMBER ADD #4 STIRRUP "d" DENOTES DIAMETER OF BAR "D" DENOTES DEPTH OF GRADE BEAM OR FOOTING (2) #5x6'-0" SIDE BAR AT EACH FACE ADD #4 STIRRUP AT EACH SIDE REBAR TO MATCH BOTTOM REBAR IN SIZE AND NUMBER (2) #5x6'-0" SIDE BAR AT EACH FACE ADD #4 STIRRUP AT EACH SIDE NOTES: 1. SLEEVE ID 2" LARGER THAN PIPE OD OR BELL OD. 2. SEAL VOID BETWEEN PIPE AND SLEEVE w/ ELASTIC WATERPROOF MATERIAL, TYP. 3" CLR 6" 1 1 D TYP 2" CLR "D" 2'-0" TYP 12" MAX 6" 12" MIN TYP 2" CLR 12" MIN TYP 2" CLR 2'-0" TYP OR TYP 48 "d" 1'-6" TYP PIPE THRU STEM WALL BOT OF FOOTING NOTE: FOR PIPES 3'-0" OR LESS BELOW FOOTING PROVIDE SLEEVE AND CONCRETE AS SHOWN; MORE THAN 3'-0" COMPACT BACKFILL OVER PIPE TO 90% AS APPROVED BY SOILS ENGINEER OR USE STEPPED FOOTING BELOW PIPE. 6" . . SLEEVES 2" LARGER THAN OD OF PIPES "D" +1'-6" SLEEVE "D" OF BACKFILL AT PIPE PER SOIL REPORT SEE NOTE
