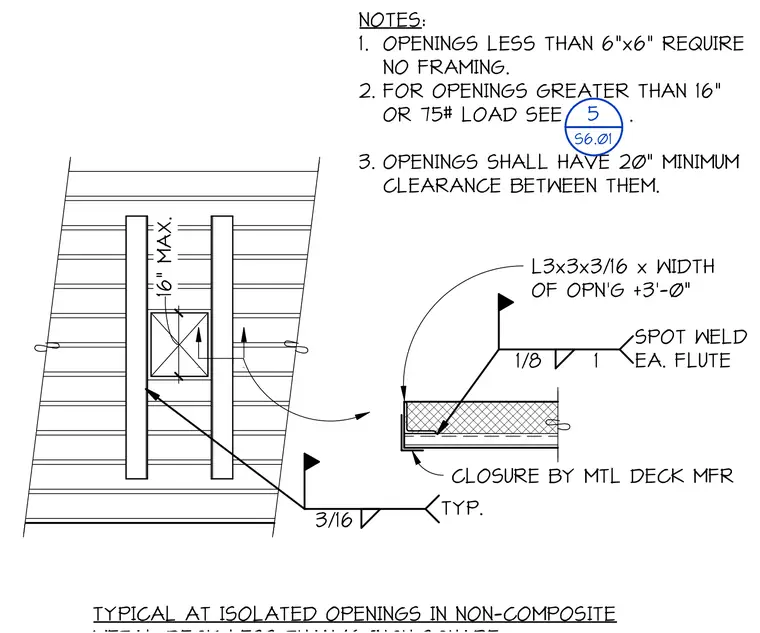

An angle sized L3x3x3/16 with a length equal to the opening width plus three feet frames isolated openings in a non-composite metal deck. One-eighth inch spot welds secure the angle to each flute of the metal deck. A three-sixteenths inch typical weld connects the assembly. Metal deck manufacturer closure strips seal the perimeter.
1/8 1 SPOT WELD EA. FLUTE NOTES: 1. OPENINGS LESS THAN 6"x6" REQUIRE NO FRAMING. 2. FOR OPENINGS GREATER THAN 16" OR 75# LOAD SEE . 3. OPENINGS SHALL HAVE 20" MINIMUM CLEARANCE BETWEEN THEM. 3/16 TYP. 16" MAX. S D F dfg dfg CLOSURE BY MTL DECK MFR L3x3x3/16 x WIDTH OF OPN'G +3'-0" 5 S6.01 TYPICAL AT ISOLATED OPENINGS IN NON-COMPOSITE
