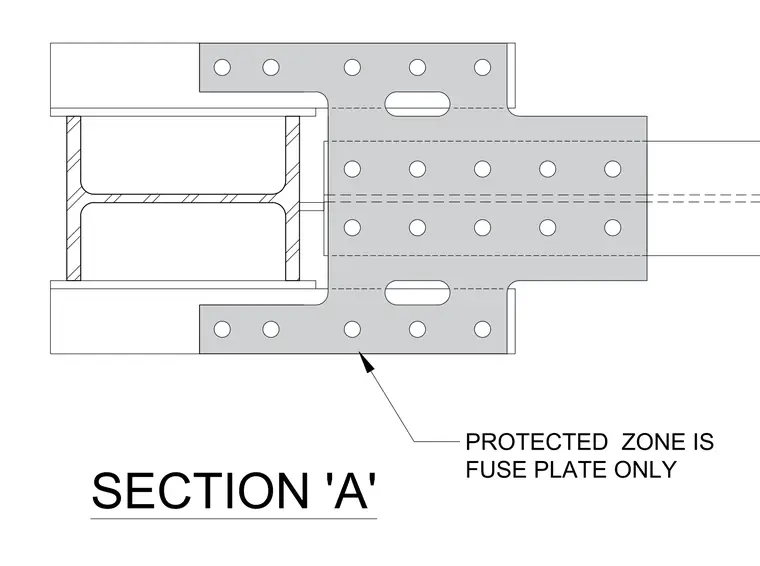

This structural section details a Durafuse moment connection framing assembly featuring a wide-flange steel beam connected via bolted fuse plates. The protected zone is restricted exclusively to the fuse plate assembly as indicated by the drawing note.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
