Structural · S-E885V

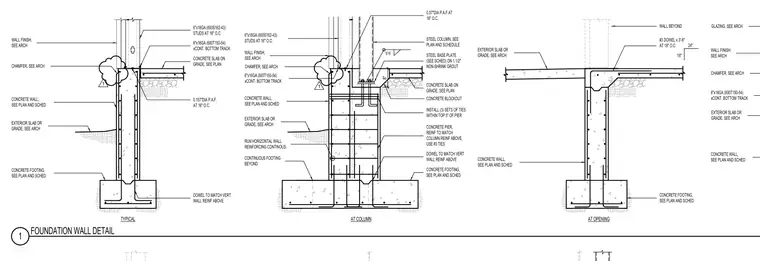

Foundation Wall Detail

Materials

Concrete Steel Masonry / CMU Glass / Glazing

Elements

Columns Walls Floors / Slabs Foundations / Footings Arches Anchors / Embeds Connections / Plates Reinforcing Roof / Floor Openings

Connections

Base Plate / Anchorage Rebar Splice / Development

About this detail

The typical foundation wall assembly consists of a continuous concrete footing supporting a cast-in-place concrete wall with vertical and horizontal reinforcing dowels matching the wall above. The exterior slab on grade bears against the wall, which transitions above to cold-formed steel framing composed of 6-inch 18-gauge studs at 16 inches on center tied into a continuous bottom track anchored with powder-actuated fasteners. At the column condition, a concrete pier extends from the continuous footing with column reinforcing tied by three sets of number 3 ties within the top 5 inches, supporting a steel column on a steel base plate set over 1-1/2 inches of non-shrink grout. The opening condition incorporates a reinforced concrete wall with number 3 dowels measuring 3 feet 6 inches at 18 inches on center alongside exterior slab or grade transitions.
