Structural · S-E84VV

Structural Steel Gusset Plate Connection with Diagonal Bracing

Materials

Steel

Elements

Connections / Plates

Connections

Gusset Plate Welded Connection Rebar Splice / Development

About this detail

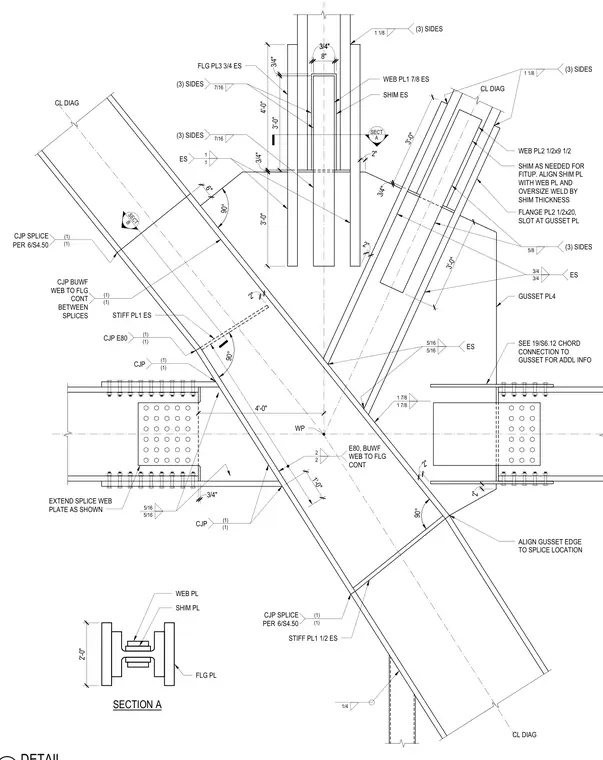

This structural detail shows a heavy steel truss connection featuring a gusset plate, diagonal bracing members, flange plates, web plates, and shim plates for fit-up. The connection incorporates complete joint penetration and fillet welds specified with E80 electrodes, along with stiffener plates and web plate extensions. Shims are sized as needed for alignment, with shim plates matched to web plates and welds oversized by the shim thickness. The assembly details intersecting structural members meeting at work points with specific angle and dimensional clearances.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
