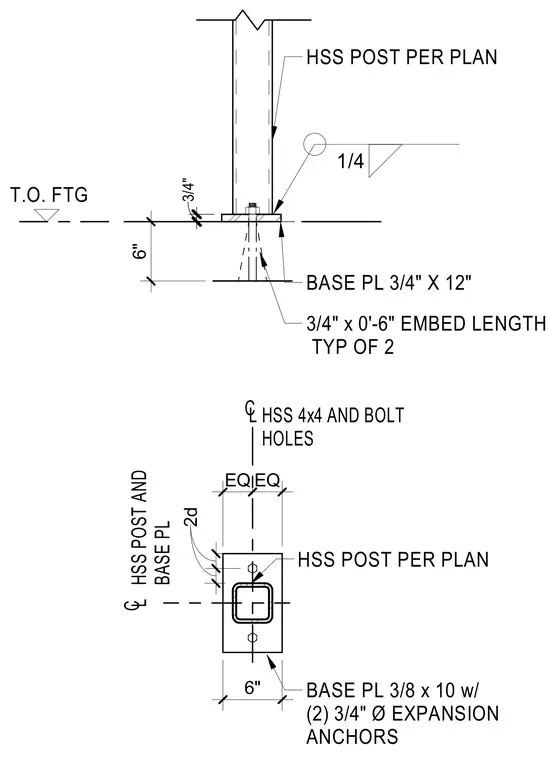

An HSS post base plate connection is supported by a concrete footing. The assembly consists of an HSS post welded to a three-quarter-inch thick base plate with a quarter-inch fillet weld. The base plate is secured with two three-quarter-inch diameter anchors embedded six inches into the concrete. The top of footing is indicated as the reference elevation for the base plate installation.
6" C L HSS POST AND BASE PL 2d . EQ EQ C L HSS 4x4 AND BOLT HOLES BASE PL 3/8 x 10 w/ (2) 3/4" Ø EXPANSION ANCHORS HSS POST PER PLAN HSS POST PER PLAN BASE PL 3/4" X 12" 3/4" x 0'-6" EMBED LENGTH TYP OF 2 1/4 6" T.O. FTG 3/4"
