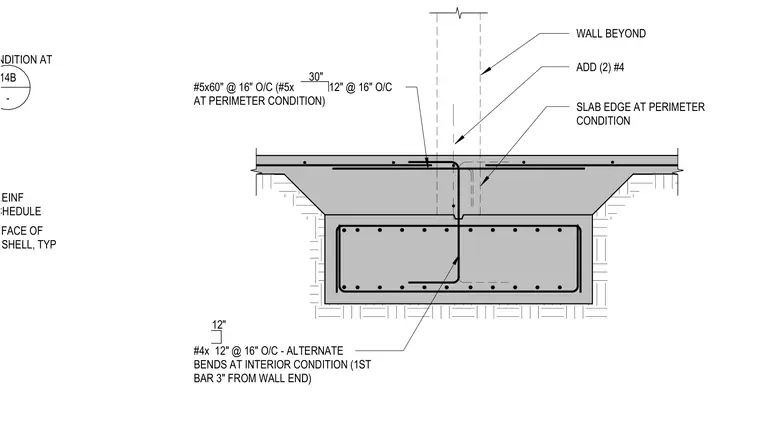

Reinforced concrete slab edge conditions interface with a masonry wall opening. Horizontal and vertical reinforcement consists of number 4 bars spaced at sixteen inches on center with alternate bends at interior conditions and the first bar placed three inches from the wall end. Additional reinforcement includes number 5 bars at sixty inches by sixteen inches on center at perimeter conditions, plus two number 4 wall bars beyond for similar conditions. Reinforcement for jambs is placed per schedule fourteen B at the inside face of the block shell typically.
#4x 12" @ 16" O/C - ALTERNATE BENDS AT INTERIOR CONDITION (1ST BAR 3" FROM WALL END) SLAB EDGE AT PERIMETER CONDITION 12" #5x60" @ 16" O/C (#5x 12" @ 16" O/C AT PERIMETER CONDITION) 30" ADD (2) #4 WALL BEYOND FOR SIMILAR CONDITION AT JAMB REINF PER SCHEDULE 14B - INSIDE FACE OF BLOCK SHELL, TYP
